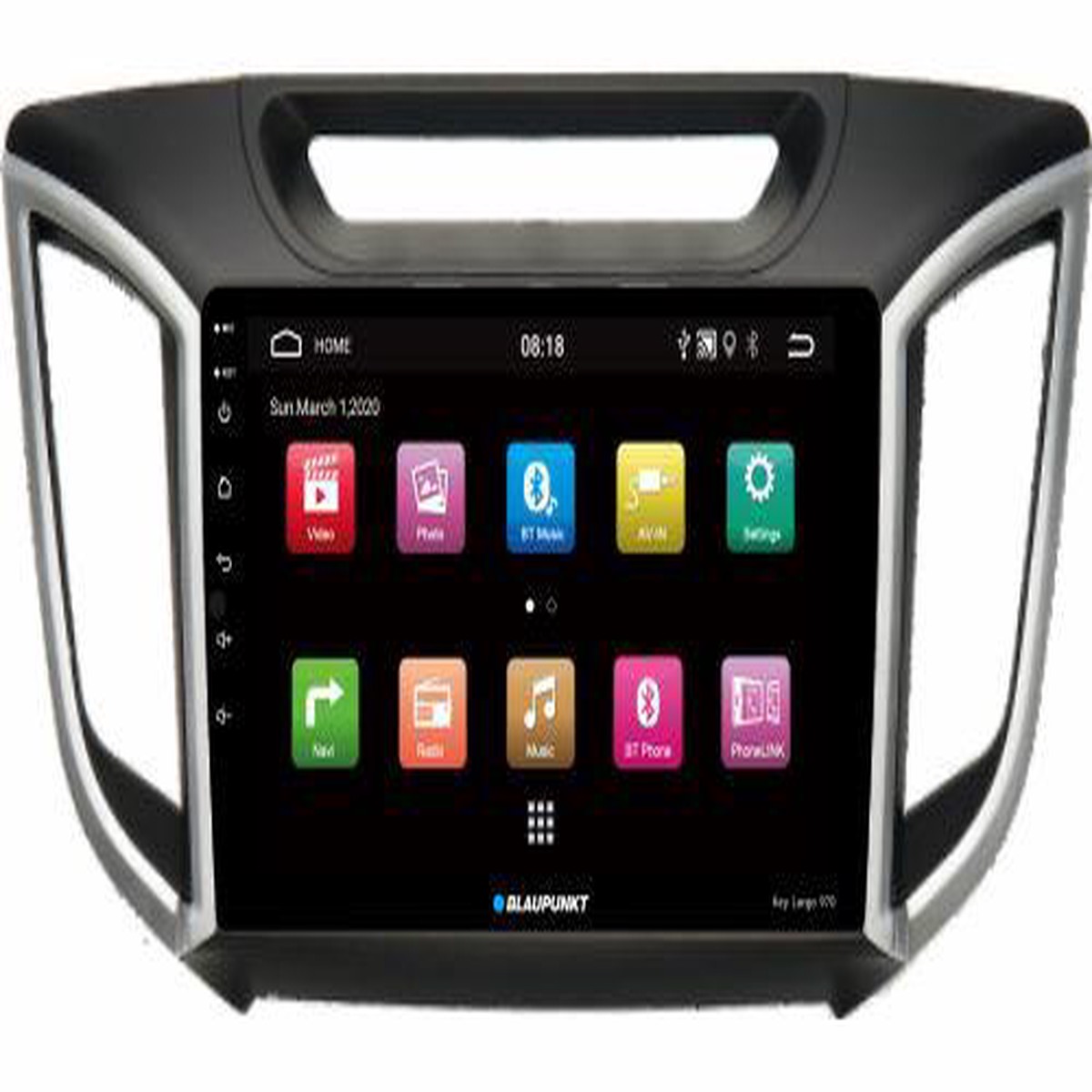

BLAUPUNKT Key Largo 970 – 10.1 Inch Android Player

Product Overview

Key Largo 970 – 10.1inch

Bureau of Indian Standards (BIS) certified 9 Android OS Multimedia Car Audio System with PhoneLINK, Full HD (1080p) video playback, Navi Ready, 2GB DDR3 Memory / 16GB Flash Storage

Key Largo 970 – 10.1inch can be installed in your vehicle using a fascia (frame) kit that is specially designed for you car model. Please select your car model below to see the right fascia for your radio.

Product Details

Blaupunkt Key Largo 970 – 10.1

Android 10.1 Digital Capacitive TFT touch with 2.5G IPS screen Car Multimedia audio system with PhoneLINK, Navi Ready (via mSD card, 2GB DDR3 Memory with 16GB flash storage, Wi- Fi ready, 2 USB , Full HD (1080p) video playback via USB, Rear View camera input, Bluetooth Phone Book & Audio streaming, Video Out, Intuitive GUI, 10 band EQ, 24 bit DA converter 192 kHz, High power 4 x 50 watts output. FLAC File compatible.

Android v 9.0

Android 9.0 operating system with 2GB DDR3 Memory and 16GB Flash Storage, Wi-Fi and Navi Ready.

10.1 Fascia Compatibility

Designed to fit with fascias available for most cars (sold separately).

PhoneLINK

Part of ‘SMART & SAFE’ feature list that allows users to mirror their smart phone Phone screen on the radio display. This app is designed to work with select smart phones via original USB data cable. Access Apps, Mail & Messages while on the go.Nevertheless, road safety has the highest priority.Please, always use appsthat do not distract you from the traffic ahead or behind.Your community will thank you.

FM/AM with High End Tuner

This device comes equipped with a high end tuner section (OE grade). After extensive testing across cities in India, the tuner section in this series is dialed in to deliver its best performance.

Bluetooth

Key Largo 970 comes equipped with BT 4.0 (with EDR) that supports HFP ( Hands Free Profile), A2DP ( Advance Audio Distribution profile / Streaming), PBAP ( Phonebook Access Profile), AVRCP ( Audio Video Remote Control Profile)

2 X Rear USB Ports

Key Largo 970 comes equipped with 2 USB ports Rear) (Type A) for Music and Video playback.

Rear View Camera Input

Connect a Blaupunkt Rear View Camera (sold separately) and make parking easy.

10 Band Equalizer

With a 10 Band Equalizer, allowing the user to fine tune reproduced sound to suit individual taste.

2V Pre out (Front & Rear + SUB OUT)

A high pre-out voltage ensures that the user does not need to turn-up the gain level on external amplifiers. Turning up the gain level too high causes excessive heat generation in external amplifiers & allows distortion to creep in. A high pre-out voltage from the radio means that amplifiers can run cool & play all day long with the least amount of distortion (A part of our Loud & Clean feature).

Steering Wheel Control Function

Key Largo 970 comes with learning steering wheel control capability. Once installed and connected, pairing steering wheel control buttons with the Radio is a very simple exercise.

General Specifications

• 10.1 Capacitive Touch Car Multimedia Audio System
• Android 9.0
• 2 GB RAM | 16 GB Flash Storage
• High-end tuner
• Navigation Ready
• PhoneLINK
• .flac Compatible
• Wi Fi / Internet Access Ready via Phone Hotspot
• Bluetooth 4.0
• External microphone
• 2x Rear USB
• Rear AV input
• Rear view camera input
• Steering Wheel Control input
• Video Output
• 10-band equalizer
• 4-channel pre-amp output
• 2 Channel Sub Output
• 4 x 50 Watt Max. power
• Car Specific Fascia [FRAME ] to be purchased separately

Frequently Asked Questions (FAQ)

Q: Will the Blaupunkt Key Largo 970 fit in my car?

A: Yes! The Key Largo 970 features a standard 9-inch chassis design. By pairing it with a vehicle-specific 9-inch fascia frame and wiring harness for your car’s make and model, it fits cleanly into almost any dashboard.

Q: How does PhoneLINK screen mirroring work?

A: PhoneLINK allows you to duplicate your smartphone’s display directly onto the 9-inch touchscreen. Simply connect your smartphone to one of the rear USB ports using an original USB cable.

Q: Can I connect my factory steering wheel controls and a reverse camera to this system?

A: Yes. The Key Largo 970 includes dedicated inputs for steering wheel control (SWC) interfaces and a dedicated RCA video input for rear-view parking cameras.
