Blaupunkt Rear View Camera BC DH01

Product Overview

170 Universal Dual Mount Capable Rear View Camera

Car Accessories – Reverse Camera

Product Details

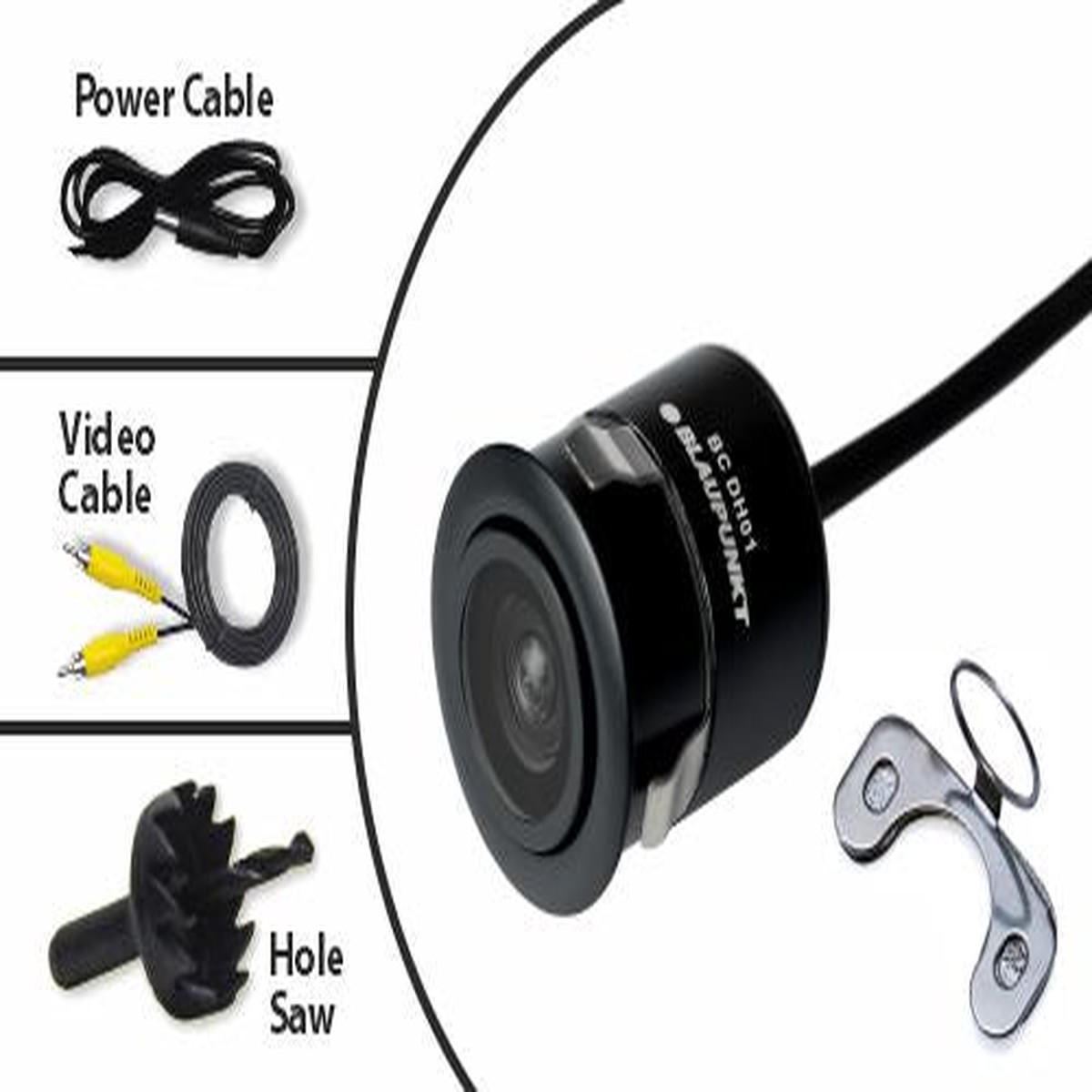

170 Universal Dual Mount Capable Rear View Camera – BC DH01

BC DH01 (rear bumper camera / number plate camera) is equipped with high end 1/3″ CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside.

C-MOS Sensor

ACMOS sensoris an electronic chip that converts photons to electrons for digital processing. BC DH01 incorporates a highly efficient color sensor and modern electronics, reducing power consumption.

General Specifications

• Power Supply: DC12V3V
• Current Consumption: 80mA
• Optical Format: 1/3
• Image Sensor: CMOS
• Effective Pixels: 1080 x 720
• Lens Angle: 170 (D), 120 (H), 100 (V)
• White Balance: Auto
• Water Resistance : IP67
• Illumination Min.: 0.1 Lux
• TV System : PAL/NTSC
• Operating Temperature: -20C – +70C
• Storage Temperature : -20C ~ +70C
• Video Signal – 1.0Vp-p at 75ohm

Frequently Asked Questions (FAQ)

Q: Can the Blaupunkt BC DH01 be connected to my existing touchscreen or Android head unit?

A: Yes! The camera uses a standard RCA composite video cable ($1.0ext{Vp-p}$ output), making it compatible with almost any factory or aftermarket double-DIN or Android touchscreen system with a reverse camera input.

Q: Can this camera be used as a front-view camera?

A: Yes. The BC DH01 features a mirror-image flip option. By cutting the designated wire loops on the cable harness during installation, the image switches from a mirrored rear-view image to a direct front-view image.

Q: Is the camera safe to wash during pressure car washes?

A: Absolutely. It carries an IP67 weather-resistance rating, meaning it is fully dust-tight and resistant to water splashes, rain, and pressure washing.
