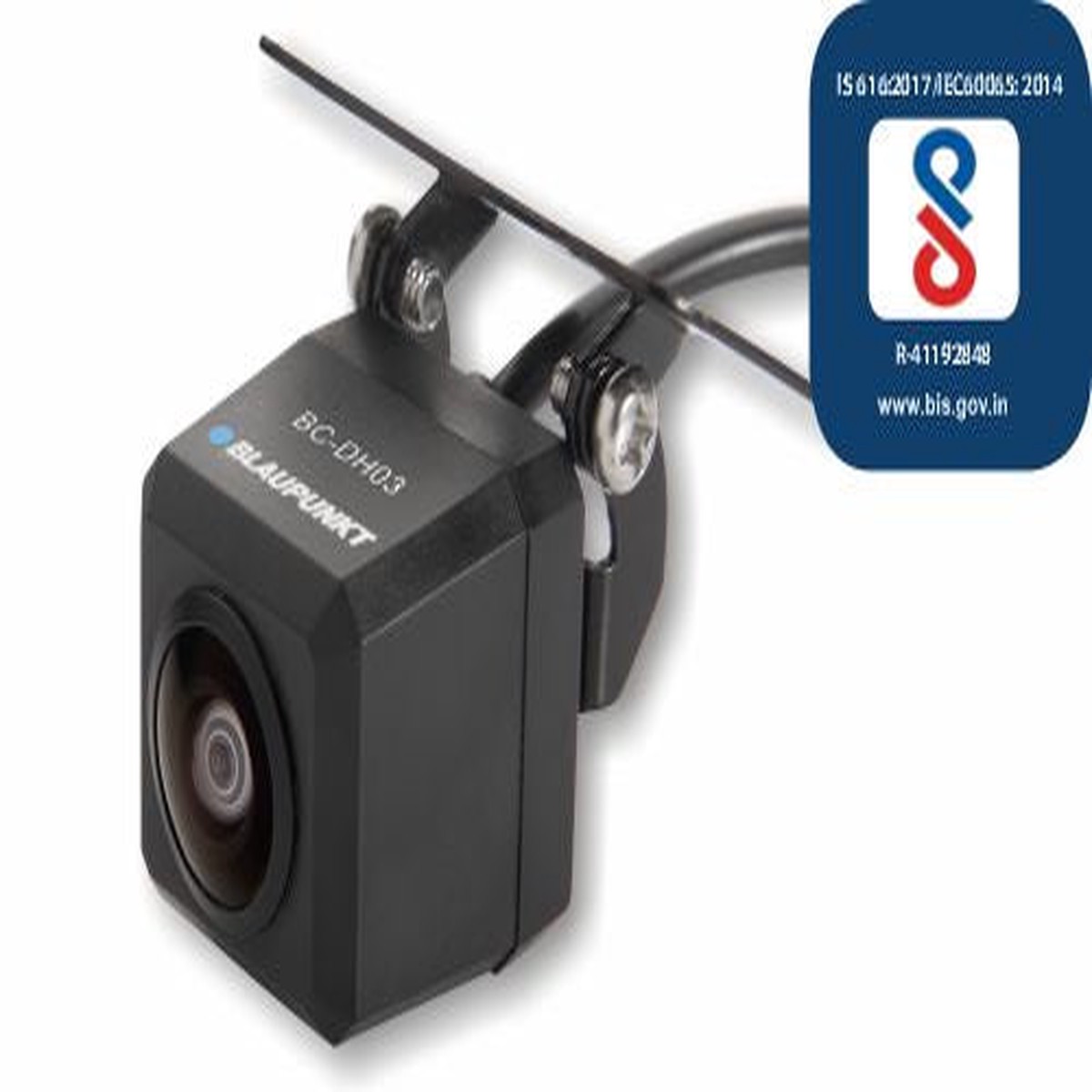

Blaupunkt Rear View Camera BC DH03

Product Overview

Bureau of Indian Standards (BIS) certified 170 Universal Rear View Number Plate Camera

Car Accessories – Reverse Camera

170 Blaupunkt Universal Rear View Camera – BC DH03

BC DH03 (rear number plate camera) is equipped with high end 1/3″ CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside.

C-MOS Sensor

ACMOS sensoris an electronic chip that converts photons to electrons for digital processing. BC DH03 incorporates a highly efficient color sensor and modern electronics, reducing power consumption.

General Specifications

• Power Supply: DC12V3V
• Current Consumption: 50mA
• Resolution: 720 TVL
• Optical Format: 1/3
• Image Sensor: CMOS
• Effective Pixels: 1080 x 720
• Lens Angle: 170 wide angle
• Electronic Shutter: 1/60 – 1/100000 sec
• White Balance: Auto
• Humidity: up to 95%
• Water Resistant
• Illumination Min.: 0.1 Lux
• PAL / NTSC compatible
• Operating Temperature: -20C – +70C

Country of origin: China

Frequently Asked Questions (FAQ)

Q: Will the Blaupunkt BC DH03 camera work with my touchscreen player or Android stereo?

A: Yes, the BC DH03 uses a standard RCA video output cable, making it universally compatible with almost all aftermarket Android players, touchscreen head units, and standalone rear view displays that feature a camera RCA input.

Q: Is the camera waterproof?

A: Yes, the Blaupunkt BC DH03 carries an IP68 rating, meaning it is fully sealed against heavy rain, dust, and pressure washing.

Q: Does this camera feature parking guide lines on the screen?

A: Yes, the camera generates static parking reference grid lines on your display screen to assist you in judging distance from objects behind your bumper while reversing.
