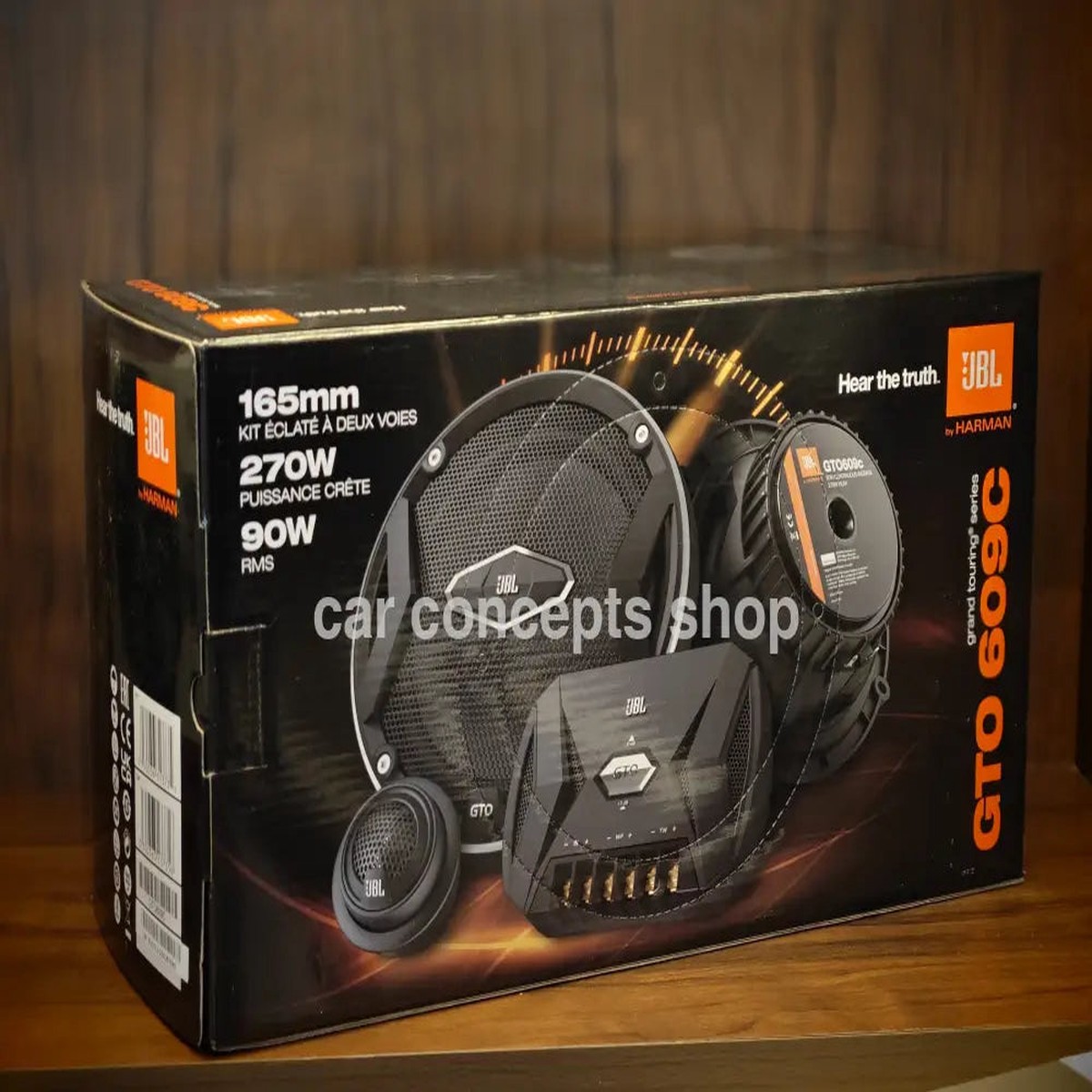

JBL GTO 609c Component Speaker 270w

Product Overview

JBL GTO-609C

Ultimate sound experience, Mid-bass, tweeter and cross-over bring music to life in your car

High-fidelity component car speakers bring life to your sound system.

JBL GTO 609C component speaker handles 270 watts peak power (75 watts RMS). This much power makes for an ideal match to systems powered with head-unit or factory-amplifier power levels. Even better, the speaker matches many of the GTO Series amplifier combinations. As a result, it can keep up with systems that feature one or more subwoofers and satisfy high-fidelity audiophile listeners. And its great power-handling specifications also increase reliability over the lifetime of the speaker.

Product Features

Type Two-Way

Size 6-1/2″

What’s in the box?

• 1 pair of speakers

• 1 pair of tweeters

• 1 pair of crossover

• 1 pair of speaker grilles

• Tweeter surface mount cups

• Tweeter angle mount cups

• Tweeter mounting screws

• Owners Manual

Audio Specifications

Nominal Impedance 3 ohms

Power Handling (RMS) 5W – 200W

Power Handling (Peak) 270W

Sensitivity (2.83V/1m) 92dB

Frequency Response 67Hz-21kHz

Dimensions

Mounting Depth Tweeter (in) 13/16External Diameter (in) 6-7/8Mounting Cutout Diameter Tweeter (in) 1-5/8Mounting Depth (in) 2-1/16Mounting Cutout Diameter Tweeter (mm) 41External Diameter (mm) 175Mounting Depth (mm) 52Mounting Depth Tweeter (mm) 20Mounting Cutout Diameter (in) 5Mounting Cutout Diameter (mm) 127

1 YEAR BRAND WARRANTY

Features

25 270 watts suggested amplifier power range

JBL engineers designed the GTO 609C component speaker to produce strong, clear sound from a head-unit or amplifier capable of delivering up to 270 watts of power. This makes the GTO 609C an ideal match to systems powered with head-unit or factory-amplifier power levels. Even better, the speaker matches many of the GTO Series amplifier combinations. As a result, it can keep up with systems that feature one or more subwoofers and satisfy high-fidelity audiophile listeners. And its great power-handling specifications also increase reliability over the lifetime of the speaker.

Patented Plus One woofer-cone technology

The GTO 609Cs Plus One carbon-injected cones provide more overall speaker-cone area than other cones in its class. With an effective increase in cone area, the speaker radiates more air. Also, its carbon-injected cone material produces a lighter and stiffer cone. The result is a better low-frequency response and a greater ability to make those important musical notes that people often associate with larger speaker sizes.

Fiberglass-reinforced plastic (FRP) frames

The fiberglass-reinforced plastic (FRP) frames used in the GTO 609Cs 6-1/2-inch (160-millimetre) woofer/midrange drivers resist warping even when you mount them on uneven surfaces. Their nonmagnetic carbon composite helps to control the magnets energy and deliver it to the voice coil instead of wasting it as heat. Whats more, the plastic doesnt resonate. The result of this control is accurate sound in your car.

Frequently Asked Questions (FAQ)

Q: Do I need an external amplifier to run the JBL GTO609C component system?

A: No, an amplifier is not strictly required. Thanks to high sensitivity (93 dB) and a 3-ohm low-impedance design, the GTO609C will play significantly louder and clearer than stock speakers even when driven directly by a factory head unit. However, pairing them with an external 4-channel amplifier (rated between 50W to 90W RMS) will unlock their full dynamic mid-bass potential.

Q: Where should the separate tweeters be mounted in my vehicle?

A: Component tweeters perform best when placed at or near ear level. Ideal mounting locations include the front A-pillars, corner sail panels (near side mirrors), or upper dashboard slots. Mounting kits and surface-mount pods are included in the box.

Q: What is the purpose of the external crossover boxes?

A: The external crossover networks separate the incoming full-range audio signal from your stereo, routing low and midrange frequencies safely to the door woofers and high frequencies to the soft-dome tweeters. This prevents distortion and protects the tweeters from low-bass damage.

Q: Will these 6.5-inch speakers fit into my vehicle’s front door openings?

A: Yes, the GTO609C fits standard 6.5-inch (165mm) and oversized 6.75-inch factory speaker openings. JBL includes multi-application adapter rings in the box to accommodate various OEM mounting bolt patterns without requiring custom panel modifications.

Q: What does the “+3dB” switch on the crossover do?

A: If your tweeters are mounted down low on a door panel where carpet and seats absorb high frequencies, flicking the crossover switch to +3 dB increases high-frequency output to ensure treble details remain balanced and audible at the driver’s seat.
