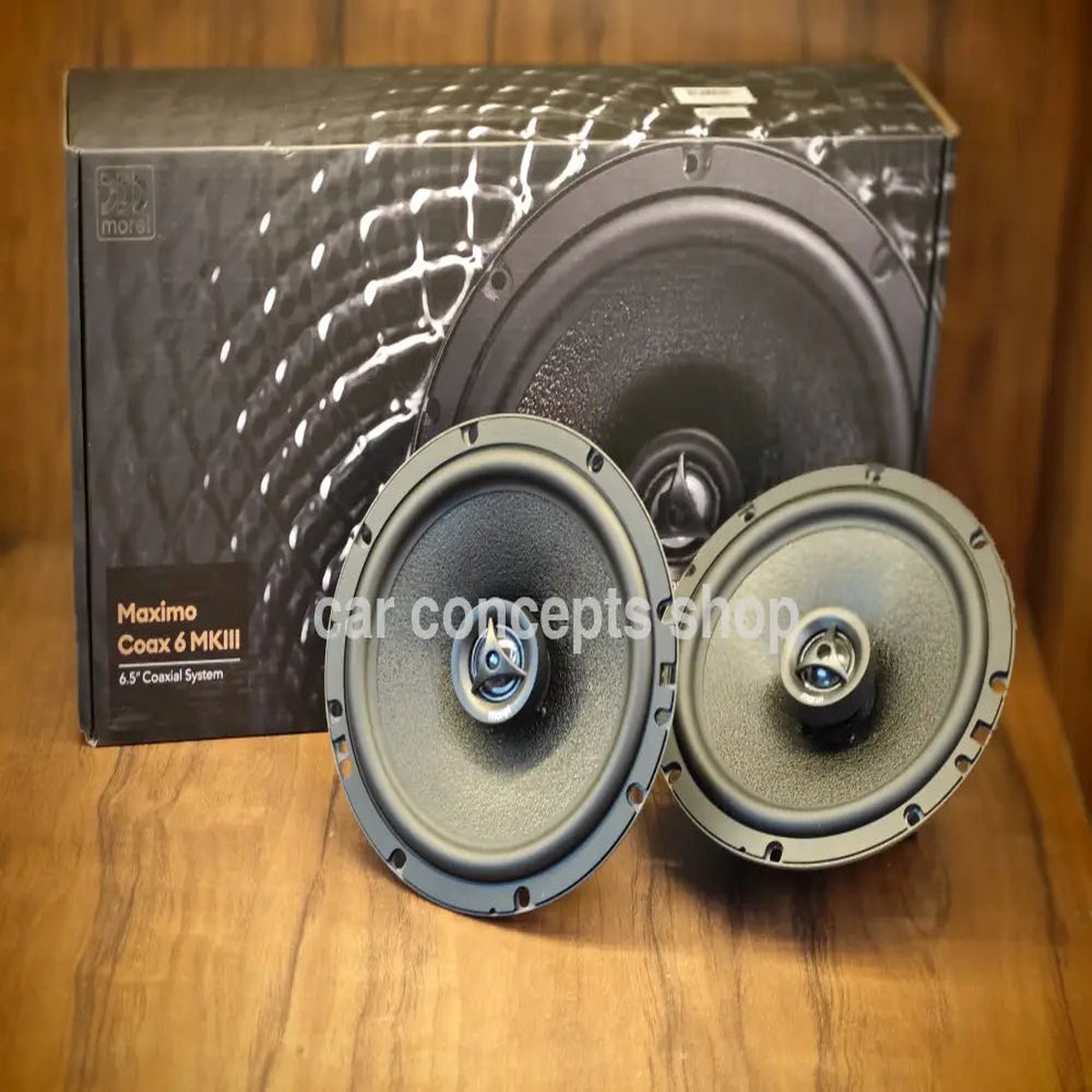

Morel Maximo 6 Mk3 6.5-Inch Coaxial Speakers

Product Overview

The Morel Maximo 6 Mk3 6.5-inch coaxial speakers are designed for car audio enthusiasts who want clear, powerful sound with easy installation. This 6-1/2-inch Maximo Series coaxial speaker set features 80W power handling, 160W max transient power, treated paper composite cones, high-grade ferrite magnets, a soft dome tweeter, and an MXR direct crossover. Frequency response is 55-20,000Hz with a crossover frequency of 3500 Hz, WF: LPF-12dB, TW: HPF-12dB, and 91 dB sensitivity.

About the Maximo Series

Morel invested the same passion, engineering, and philosophy that earned its car audio speakers countless awards into the development of the Maximo line. As a result, the Maximo Series inherits several of the companys innovative technologies.

Consisting of 2-way component systems and coaxial speakers, the Maximo Series is Morels solution for listeners who want a superb-sounding music system that can be easily installed into factory speaker locations and integrated with factory head unit power or amplification, all at a great value.

With Morels quality craftsmanship, the Maximo Coax speakers deliver the powerful sound car audio enthusiasts seek without the ear-fatiguing harshness often found in similarly priced speakers.

Maximo Coax Tweeter

The foundation of the Maximo tweeter is built on the same design principles as Morels high-end tweeters. Each coaxial tweeter uses a proprietary-coated soft textile dome and a powerful neodymium magnet motor. This design suppresses distortion while optimizing power handling and off-axis performance, delivering the sweet and warm signature sound that Morel is known for.

Soft Dome Design

The shape of the soft dome and its proprietary coating optimize off-axis performance while minimizing distortion, increasing power handling, and improving tonal and dynamic response.

19 mm (0.8-Inch) Voice Coil and Powerful Neodymium Motor

The large-format voice coil improves power handling and efficiency while providing excellent control for detailed sound reproduction.

Wide Dispersion

The carefully designed built-in phase guide helps control the dispersion pattern for superb off-axis response that minimizes high-frequency losses.

Maximo Coax Woofer

Efficiency, compact size, and versatile mounting are key strengths of the Maximo coax, starting with the woofer. At its core is an ultra-high-grade ferrite magnet that allows the design to be up to 35% smaller than standard ferrite-driven motors. This enables a shallow mounting depth for easy installation in tight spaces.

Compact Design and Versatile Basket

A shallow mounting depth and versatile mounting options allow the Maximo coaxial speakers to fit in most vehicles without modification.

25 mm (1-Inch) Voice Coil

The larger voice coil provides excellent power handling and dynamic low-frequency response.

Acudamp-Coated Paper Cone

The Acudamp-coated paper cone reduces cone distortion for higher power handling while improving weather protection.

Butyl Rubber Surround

The FEA computer-designed surround remains completely linear for excellent speaker cone control. Butyl is also an ideal surround material known for durability and long-term performance.

Computer-Optimized Cone

The computer-optimized cone ensures clean, linear movement during low-frequency reproduction, delivering increased bass dynamics.

Built-In Crossover

High-Grade Film Capacitors

High-grade film capacitors are used in the built-in tweeter crossover for pure, uncolored sound reproduction with impressive clarity.

Product Specifications

Technical Details

Nominal Impedance: 4 ohms

Power Handling: 80W

Max Transient Power Handling: 160W

Sensitivity (2.83V/1M): 91 dB

Frequency Response: 55-20,000Hz

Voice Coil Woofer: 25 mm (1″)

Voice Coil Tweeter: 19 mm (0.8″)

Voice Coil Wire: Copper

Magnet System Woofer: High-Grade Ferrite

Magnet System Tweeter: Neodymium

Mounting Depth: 63 mm (2.5″)

Net Weight: 2.38 kg (5.24 lbs)

Whats in the Box

A pair of Maximo Coax 6 speakers, 2 grilles, 2 grille mounting rings, 8 screws, 8 nuts, and a users manual.

Frequently Asked Questions

1. Are the Morel Maximo 6 MK3 speakers compatible with my car?

The Morel Maximo 6 MK3 speakers fit most vehicles that use 6.5-inch door speakers. We recommend checking your vehicle’s speaker size or contacting our team for compatibility assistance before ordering.

2. Can I use these speakers with my factory stereo?

Yes. These speakers are highly efficient and can be powered directly by most OEM factory head units without requiring an amplifier.

3. Do I need an amplifier for the best performance?

While the speakers perform well with stock stereos, pairing them with a quality amplifier will provide better clarity, stronger mid-bass response, and higher output levels.

4. What kind of sound quality can I expect?

The Morel Maximo MK3 delivers warm vocals, detailed highs, balanced mids, and improved bass response, making it suitable for all music genres including Bollywood, EDM, rock, and classical music.

5. Can these speakers be installed in both front and rear doors?

Yes. The Morel Maximo 6 MK3 coaxial speakers are commonly installed in rear doors or in both front and rear locations depending on your audio setup and vehicle configuration.
