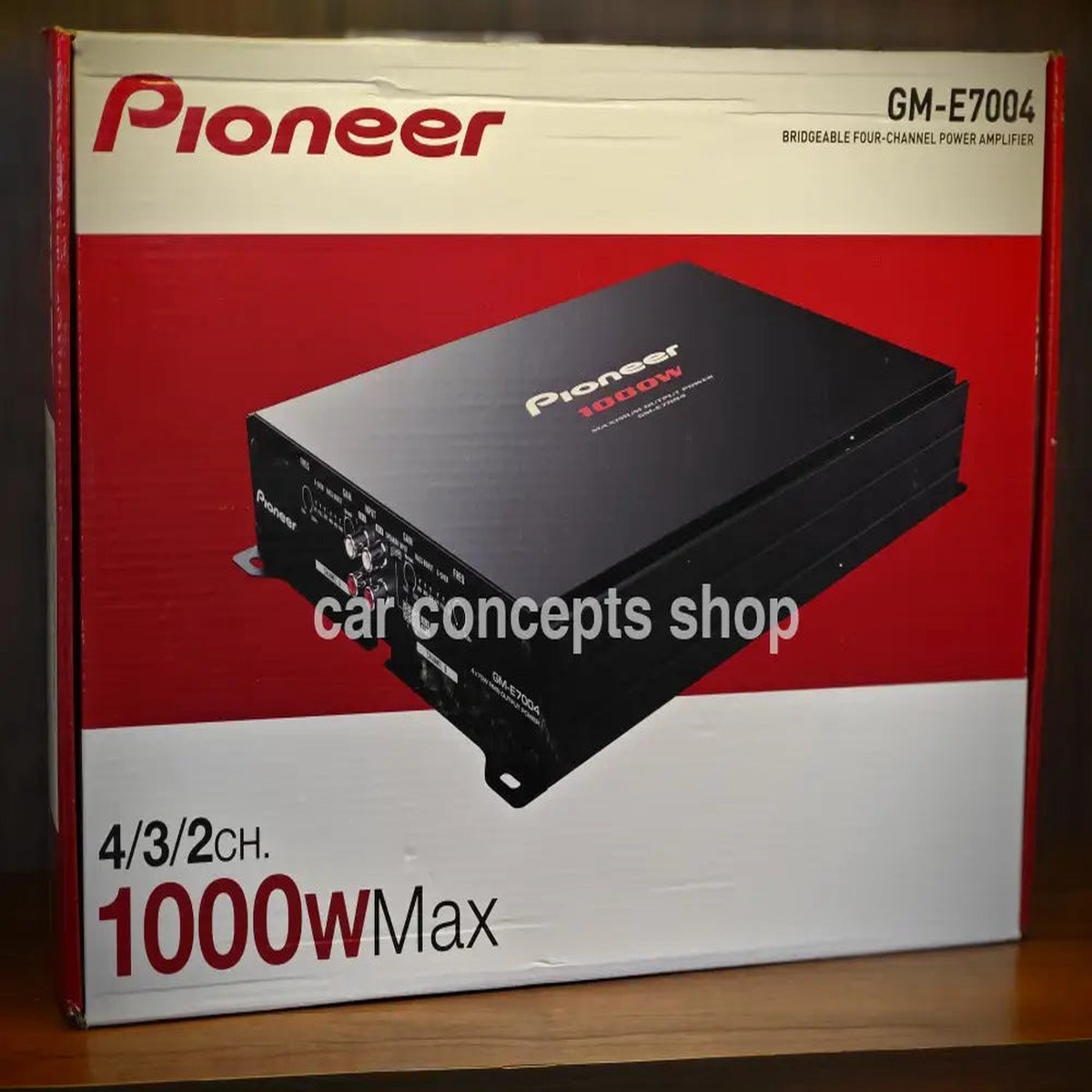

Pioneer 4 Channel Amplifier GM-E7004

Product Overview

The Pioneer GM-E7004 is a high-performance 4-channel Class-AB car amplifier designed to deliver dynamic, high-fidelity sound throughout your vehicle’s audio stage. Capable of producing up to 1000 Watts Max Power Output, this amplifier delivers 70 Watts RMS x 4 at 4 Ohms or 95 Watts RMS x 4 at 2 Ohms, supplying the clean current needed to drive full-range door speakers or component sets with minimal audio distortion.

Flexible 4-Channel, 3-Channel, or 2-Channel System Configuration

Engineered for ultimate system versatility, the Pioneer GM-E7004 supports bridgeable operation. Run all 4 channels to power your front and rear cabin speakers, or switch to 3-channel mode to run front stereo speakers ($70ext{W RMS x 2}$) alongside a single 4-Ohm subwoofer ($190ext{W RMS x 1}$).

Integrated Frequency Crossovers & Easy OEM Connection

Featuring independent selectable High-Pass (HPF at } 80ext{Hz}$) and Low-Pass (LPF at $80ext{Hz}$) crossover filters, the GM-E7004 routes correct frequency spectrums to your speakers and subwoofers. High-level speaker wire inputs allow simple connection to factory OEM head units without preamp outputs, while gold-plated RCA terminals accommodate aftermarket receivers.

Product Features

Upgrade your car audio system with the Pioneer GM-E7004 4 Channel Amplifier from the Pro Series. Experience ultimate performance and power with the latest Pro 2024 upgrade. Take your sound to the next level with this top-notch amplifier.

Features of GM-E7004

High Power and Energetic Sound

High output with the large-capacity electrolytic capacitors. Stable performance ensured with optimized PCB board.

Flexible Sound Tuning

Wide range, variable LPF & HPF for system flexibility. Two-step Bass Boost as a juice for more fun!

Other features of GM-E7004

Two-step BASS BOOST

Wide range, Variable LPF & HPF

Frequently Asked Questions (FAQ)

Q: Can I connect the Pioneer GM-E7004 directly to my factory radio without buying extra adapters?

A: Yes! The GM-E7004 features speaker-level (high-level) inputs, allowing you to connect directly to factory speaker wiring without requiring a Line Output Converter (LOC).

Q: Can I power 4 speakers and a subwoofer with this single amplifier?

A: To power 4 speakers AND a subwoofer simultaneously, you would need a 5-channel amplifier or an additional mono amp. However, you can run the GM-E7004 in 3-channel mode to power 2 front door speakers ($70ext{W RMS x 2}$) and 1 subwoofer ($190ext{W RMS x 1}$).

Q: What power wire gauge should I use for installation?

A: An 8 AWG 100% Oxygen-Free Copper (OFC) power wiring kit with a $50ext{A}$ to $60ext{A}$ inline fuse is recommended for stable electrical power delivery.
