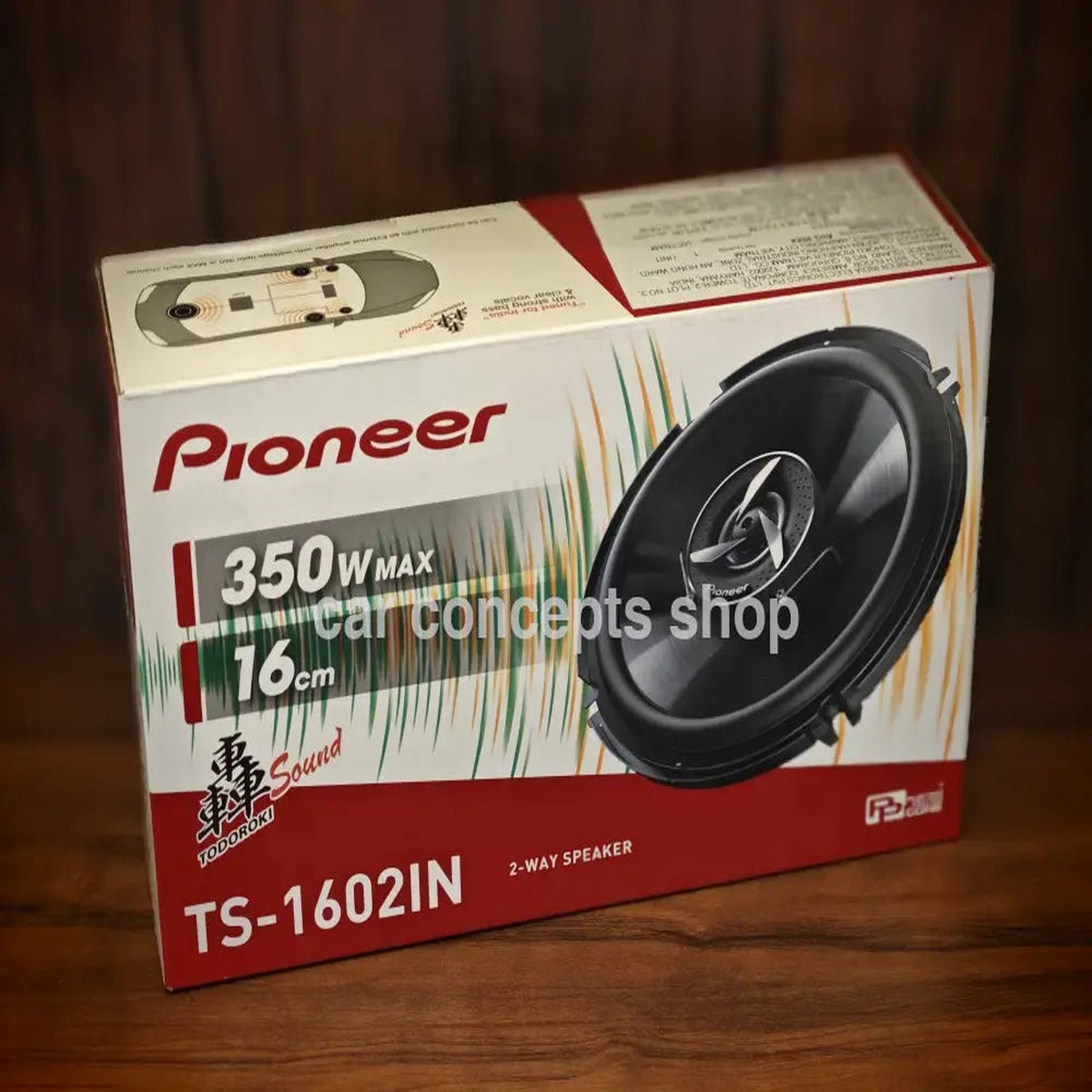

Pioneer TS-1602IN 2 Way Coaxial Speaker 350W

Product Overview

Upgrade your car’s audio system with the Pioneer TS-1602IN 2 Way Coaxial Speaker. With 350 watts of power, experience crystal-clear sound and immersive bass. Pioneer technology ensures high-quality audio for an enhanced driving experience.

The Pioneer TS-1602IN is a 2-way coaxial car speaker designed to deliver clear sound, strong bass, and reliable performance for everyday driving conditions.

Key Specifications

General Specifications

Type: Coaxial 2-WAY

Sound pressure level: 88dB (1.5dB)

Frequency range: 30 Hz35,000 Hz20dB

Maximum power: 350W

Nominal power: 50W

Cone size: 6-1/2″ (160mm) Cone

Impedance: 4 OHM

Woofer Specifications

Cone material: High rigid IMPP Cone

Surround material: Light weight elastic polymer

Tweeter Specifications

Tweeter Type

Type: Dome

Diaphragm material: Polyimide

Installation Information

Installation

Weight: 0.64 kg

Mounting depth: 53mm

Cutout hole: 128mm

Dimensions (Dia x Depth): 159 (mm) x 70.2 (mm)

Other Features of TS-1602IN

Elastic Polymer Surround

Cone surround is made of elastic polymer for strong bass.

Aluminum Bobbin

High quality aluminium voice coil bobbin is used to safeguard from heat and prolong speaker life.

Long Voice Coil

Enable large displacement. Helps in producing strong bass and high power handling.

High Heat Resistance

Made for Indian climatic conditions, especially extreme heat.

Tweeter Mounting Option

Various mounting options are included in the package to install tweeter.

Technical Details

Frequently Asked Questions

1. Is the Pioneer TS-1602IN compatible with my car?

The Pioneer TS-1602IN is a standard 6.5-inch (160mm) coaxial speaker that fits most hatchbacks, sedans, and SUVs. We recommend checking your vehicle’s speaker size and mounting depth before ordering.

2. Do I need an amplifier for the Pioneer TS-1602IN?

No, an amplifier is not mandatory. The speakers perform well with OEM music systems, but an amplifier can deliver higher volume and improved clarity.

3. What comes inside the box?

The package generally includes two speakers, speaker wires, and warranty documentation required for installation.

4. Does the Pioneer TS-1602IN provide good bass?

Yes, the speaker uses a high-rigid IMPP cone and larger magnet design to deliver strong bass and clear vocals for everyday listening.

5. What is the RMS and maximum power handling?

The speaker offers 50W RMS and 350W maximum power handling, making it suitable for both stock and upgraded audio systems.

6. Are these original Pioneer speakers with warranty?

When purchased from authorized sellers such as Car Concepts Shop, customers receive genuine Pioneer products along with manufacturer warranty support.

7. Can these speakers be installed in front and rear doors?

Yes. The Pioneer TS-1602IN can be installed in front doors, rear doors, or parcel trays depending on your vehicle’s speaker configuration.
