Sony XS-AW8 Active Underseat Subwoofer

Sony XS-AW8 Active Underseat Subwoofer

Original price was: $181.99.Current price is: $91.00.

Sony XS-AW8 160-Watts RMSUnderseat 20.32 cm (8-inch)Car Subwoofer with Inbuilt AmplifierTechnical DetailsBrandSonyManufacturerSony, Japan, Sony Corporation, 1-7-1, Konan, Minato-ku, Tokyo, 108-0075, JapanModelXS-AW8Model NameXS-AW8Product Dimensions34.4 x 25...

SKU: BE42508071282 Category: Other Availability: In stock

Sony XS-AW8 160-Watts RMSUnderseat 20.32 cm (8-inch)Car Subwoofer with Inbuilt Amplifier

Technical Details

Brand Sony
Manufacturer Sony, Japan, Sony Corporation, 1-7-1, Konan, Minato-ku, Tokyo, 108-0075, Japan
Model XS-AW8
Model Name XS-AW8
Product Dimensions 34.4 x 25 x 7.5 cm; 4.86 Kilograms
Item model number XS-AW8
Mounting Hardware 1 unit subwooofer, 1 unit remote control unit, warranty card.
Number Of Items 1
Wattage 160 Watts
Batteries Required No
Includes Rechargable Battery No
Manufacturer Sony, Japan
Item Weight 4 kg 860 g
Brand Sony
Model Name XS-AW8
Subwoofer Diameter 12 Inches
Colour Black

About this item

  • Ultra-sleek, shallow subwoofer
  • Optimally designed driver unit and low-resonance cast-aluminum enclosure
  • Supplied wired remote commander
  • High level input/Audio line input
  • Single-sided controls and terminals
  • 160-W peak (75-W RMS) output power

From the Manufacturer

  • Ultra-sleek, shallow subwoofer
  • Optimally designed driver unit and low-resonance cast-aluminum enclosure
  • Supplied wired remote commander
  • High level input/Audio line input
  • Single-sided controls and terminals
  • 160-W peak (75-W RMS) output power

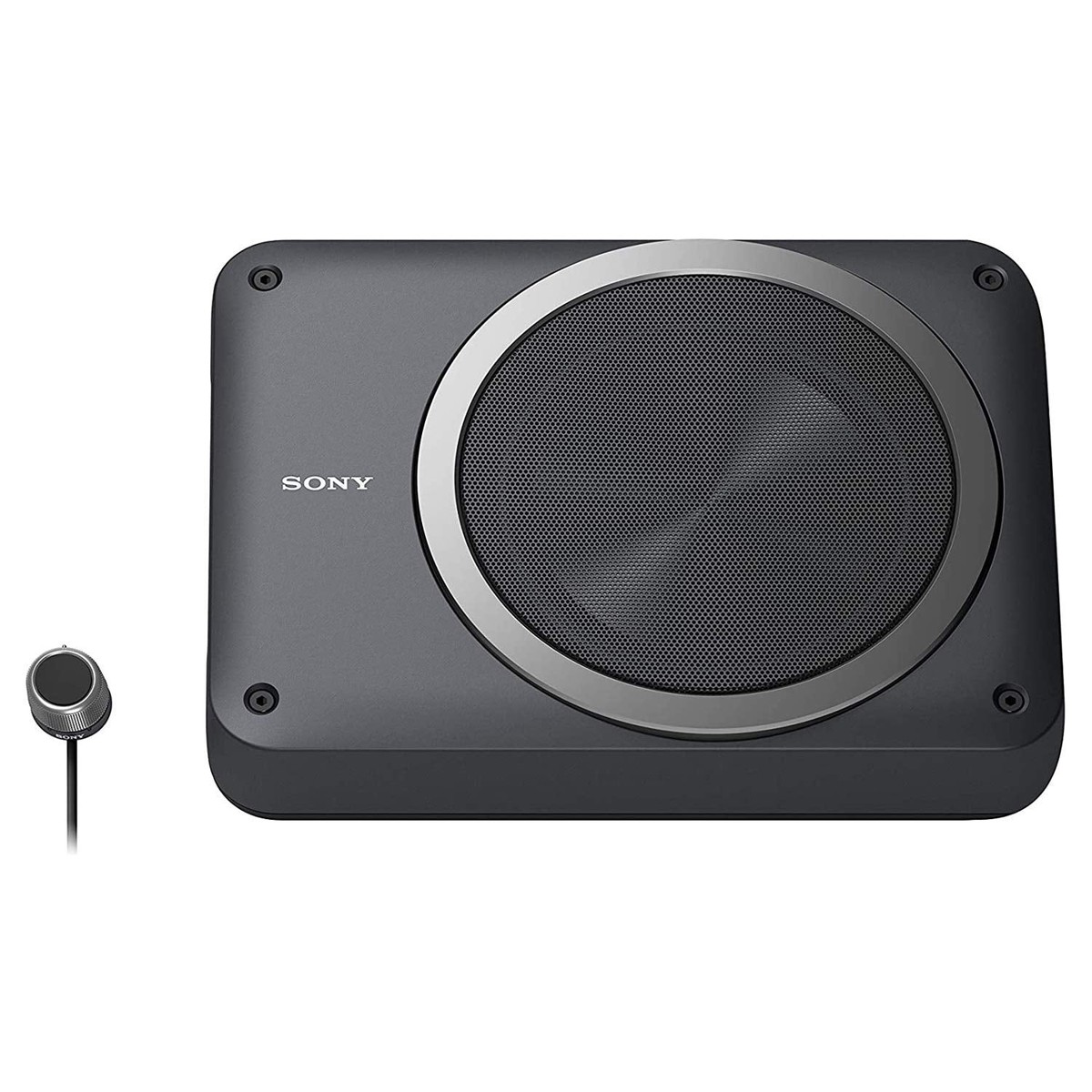

Ultra-sleek, shallow subwoofer

No space for a big subwoofer enclosure? At only 3 1/8″ (7.8 cm) deep, the XS-AW8 powered subwoofer fits in tight spaces in your vehicle for powerful bass sound throughout the car

Optimally designed driver unit and low-resonance cast-aluminum enclosure

To reproduce powerful bass sound from its compact dimensions, the slim enclosure is paired with a unique rigid subwoofer diaphragm. The built-in amplifier also integrates a sturdy heat-sink to protect the driver unit and amp without introducing unwanted vibrations and harmonic distortion.

Supplied wired remote commander

A supplied wired remote commander allows you to adjust the subwoofer volume from the driver’s seat

High level input/Audio line input

What if you’re using a factory radio that doesn’t have pre-amp outputs? Simply connect the speaker outputs of your receiver to the high-level inputs. When pre-out audio signals are available from the receiver, connect them to the CH1(R) and CH2(L) terminals. Compatibility with up to 5-V pre-outs means you can utilize higher voltage audio input for a clean audio signal and less external noise.

Single-sided controls and terminals

Connections and amplifier controls are together on the same side for easy installation and tuning. The amplifier features a variable low-pass filter for simple connection to full-range sources, including the speaker-level inputs. A switch additionally allows you to customize the subwoofer phase output, to prevent any reduced bass response due to phase cancellation from other speakers in your system.

160-W peak (75-W RMS) output power

Fill your car with 160 W (75 W RMS) of clean, dynamic bass sound with our original power IC. The matched class A/B amp is designed for high power and natural, distortion-free sound even at high output levels.

Frequently Asked Questions (FAQ)

Q: Will the Sony XS-AW8 work with my car’s original factory radio?

A: Yes! The Sony XS-AW8 features high-level (speaker wire) inputs, allowing it to connect directly to factory head units that do not have RCA preamp outputs.

Q: Do I need a separate amplifier to run this subwoofer?

A: No. The XS-AW8 is an active powered subwoofer with a built-in internal amplifier, so no external power amp is required.

Q: What is the benefit of the cast-aluminum enclosure?

A: The rigid aluminum body reduces panel flexing and unwanted chassis resonance, providing clearer, punchier bass notes while acting as an effective heat sink for the internal amplifier.
