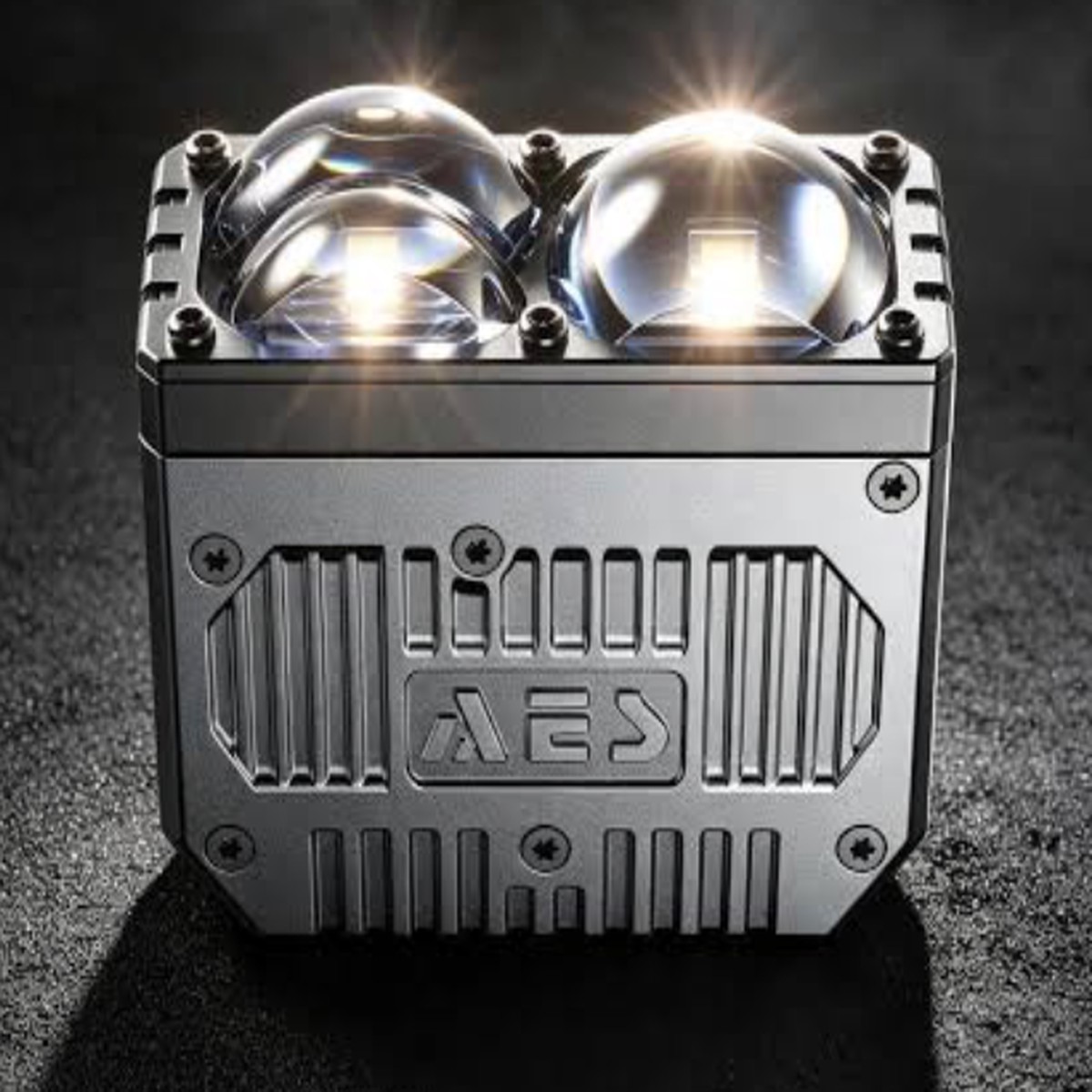

AES NV-5 Hyperboloid Auxiliary Bi-LED Projector Lens (75W High Beam | 50W Low Beam | 6000K Super White

Ultra-Wide High-Performance Auxiliary Lighting: AES NV-5 Bi-LED Projector

Upgrade your night driving and off-road visibility with the AES NV-5 Hyperboloid Auxiliary Bi-LED Projector Lens. Engineered for motorcycles, adventure touring bikes, cars, and SUVs, the NV-5 combines advanced Bi-LED technology with an optical hyperboloid glass lens to throw an ultra-wide, long-distance beam pattern on the road. Outputting up to 75W on High Beam and 50W on Low Beam, it cuts through extreme dark and harsh weather conditions while maintaining a crisp, anti-glare cutoff line.

Key Features & Highlights

• Hyperboloid Optical Lens Technology: Features premium hyperboloid high-clear glass optics that maximize beam width and down-road projection distance.

• High Power Output: Delivers 50W on Low Beam and boosts to 75W on High Beam per lens for maximum road illumination.

• 6000K Pure White Light: Clean daylight temperature enhances road contrast and sign readability while reducing night driving fatigue.

• Advanced Thermal Management: Built-in dual turbo high-speed cooling fans and copper-core heat sinks maintain optimum LED temperatures for stable performance.

• IP67 Waterproof & Weatherproof: Heavy-duty aviation aluminum alloy housing designed to withstand extreme dust, water immersion, and harsh off-road vibrations.

• Universal Auxiliary Fitment: Ideal for bumper, fog light location, crash guard, or A-pillar mounting on motorcycles, cars, 4x4s, and trucks.

Technical Specifications

• Brand: AES

• Model: NV-5

• Product Type: Hyperboloid Bi-LED Auxiliary Projector Light

• Low Beam Power: 50W

• High Beam Power: 75W

• Operating Voltage: 9V 16V DC

• Color Temperature: 6000K Super White

• Lens Material: High-Clear Hyperboloid Optical Glass

• Housing Material: Aviation-Grade Aluminum Alloy

• Waterproof Rating: IP67

• Operating Temperature: -40C to +105C

• Cooling System: Dual High-Speed Turbo Cooling Fans + Copper Heat Core

• Lifespan: 30,000+ Hours

Frequently Asked Questions

Can the AES NV-5 be mounted as a fog light upgrade on cars and motorcycles?

Yes. The AES NV-5 is designed as a compact auxiliary projector light. It can be mounted on motorcycle crash guards, car fog lamp locations, or custom auxiliary light brackets.

Is a relay wiring harness recommended for installation?

Yes. Because the NV-5 produces up to 75W of high-power output per projector, using a dedicated heavy-duty relay wiring harness with a fused switch ensures stable voltage delivery and protects your vehicle’s factory electrical system.
