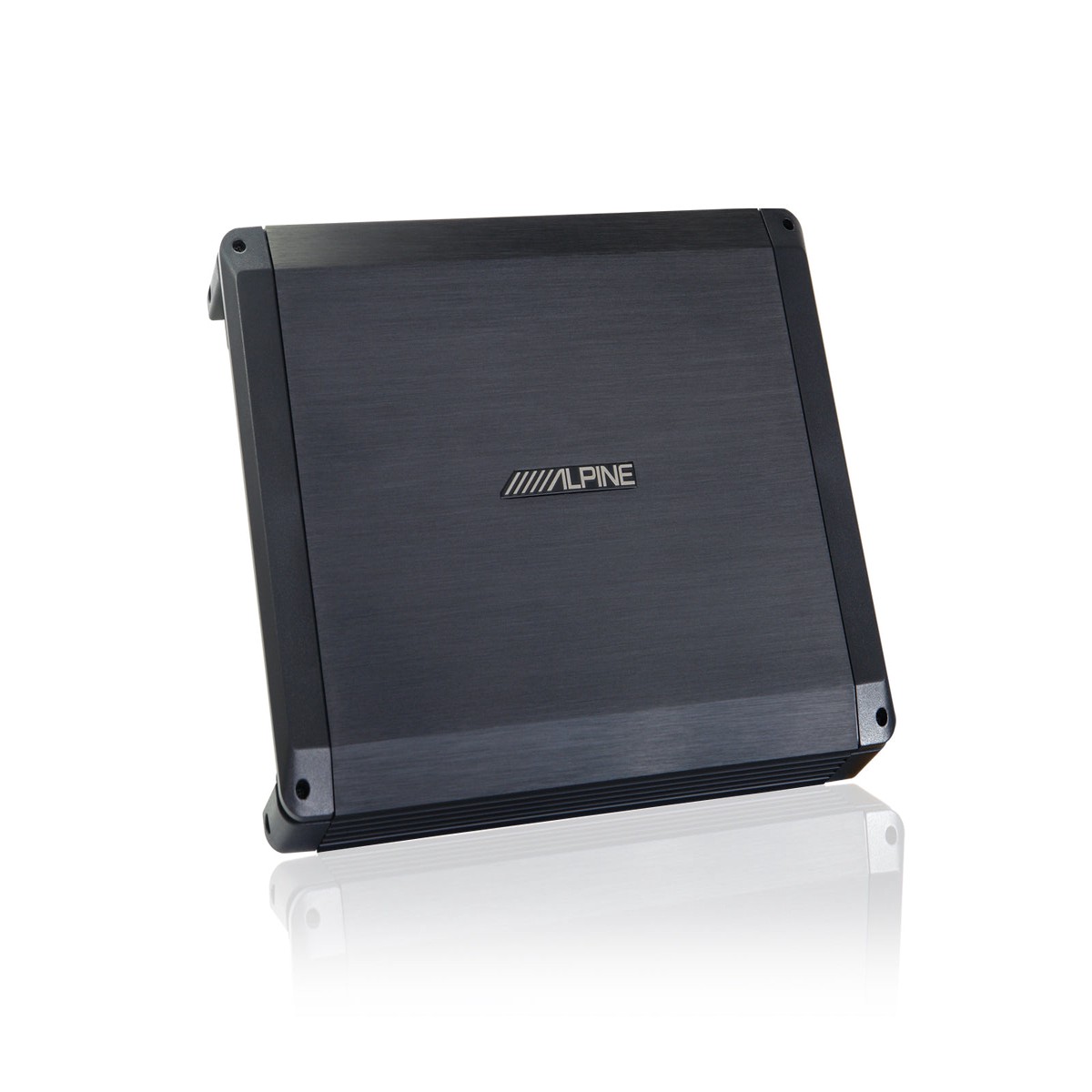

Alpine BBX_F1200 4 Channel Amplifier

Product Overview

The Alpine BBX-F1200 is a high-value, performance-driven 4-channel Class-A/B car amplifier engineered to deliver signature Alpine acoustic clarity and power output at an approachable price point. Delivering up to 600 Watts Max Power Output ($50ext{W RMS x 4 at } 4\Omega$ or $70ext{W RMS x 4 at } 2\Omega$), the BBX-F1200 provides the clean current required to drive aftermarket door speakers or component sets with warm, natural audio detail.

Flexible System Configuration & MOSFET Power

Designed for 4-channel, 3-channel, or 2-channel bridged operation, the BBX-F1200 easily adapts to your vehicle’s audio layout. Run all four channels to power front and rear speakers, or bridge channels 3 & 4 ($130ext{W RMS x 1 at } 4\Omega$) to drive a dedicated subwoofer while running front door speakers on channels 1 & 2. Its PWM MOSFET power supply maintains stable current delivery under heavy playback loads.

Onboard Crossovers & Bass EQ Enhancement

Precision tuning is simplified with independent variable High-Pass (HPF) and Low-Pass (LPF) crossovers ($50ext{Hz } 500ext{Hz}$ at $12ext{dB/octave}$) that route correct frequency bands to your drivers. An onboard Bass EQ control ($0ext{ to } +12ext{dB at } 45ext{Hz}$) allows you to boost low-end punch, while a 3-way protection circuit shields the unit against thermal over-heating, voltage spikes, and speaker shorts.

Product Features

Alpine BBX-F1200

• Product Dimensions 28 x 24 x 5.2 cm; 1 Kilograms
• Amplifier type: Class-A/B
• Channel design: 4/3/2 channel
• Thermal control: Thermal management control
• Power supply: DC-DC PWM power supply
• Power supply design: Mosfet power
• Current protection: Over-current, over-voltage and thermal protection
• Crossover: Variable low-pass/high-pass

Frequently Asked Questions (FAQ)

Q: Can I use the Alpine BBX-F1200 to power both door speakers and a subwoofer?

A: Yes! The BBX-F1200 supports 3-channel mode. You can use Channels 1 and 2 to power your front door speakers ($50ext{W RMS x 2}$), and bridge Channels 3 and 4 together to supply $130ext{W RMS}$ to a single 4-Ohm subwoofer.

Q: Does this amplifier work with factory original radios?

A: Yes, through low-level RCA connections using a Line Output Converter (LOC), or via high-level signal adapters connected to the amplifier’s $0.2ext{V } 8ext{V}$ RCA input jacks.

Q: What wiring kit size is recommended for installing the Alpine BBX-F1200?

A: An 8 AWG 100% Oxygen-Free Copper (OFC) power wiring kit with an inline $40ext{A}$ fuse is recommended for stable performance and electrical safety.
