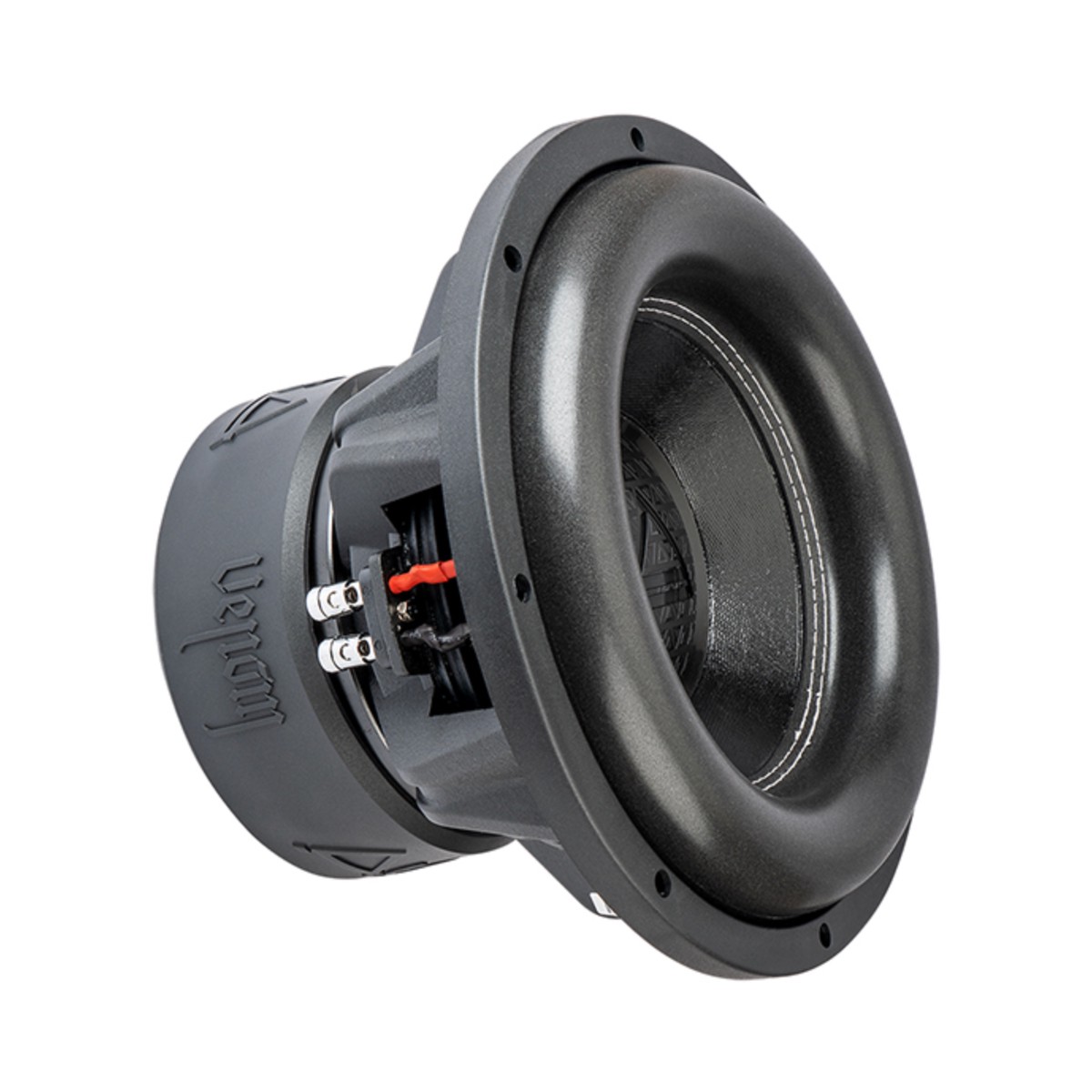

Aura Car Audio Venom 12 D2 12-Inch 1500W RMS Dual 2-Ohm Competition Subwoofer

Ground-Shaking SPL Bass: Aura Car Audio Venom 12 D2 12-Inch Subwoofer

Product Overview

Dominate the SPL lanes and transform your vehicles low-end response with the heavy-duty Aura Car Audio Venom 12 D2 12-Inch Competition Subwoofer. Engineered for extreme power handling and deep excursion, this high-performance bass monster pushes 1501W RMS Power and an incredible 3001W Peak Output. Featuring a massive 219 oz (6.2 kg) high-grade ferrite magnetic motor, a 3-inch high-temperature round aluminum voice coil, and an unpressed paper cone, the Aura Car Audio Venom 12 D2 delivers punchy, deep, and distortion-free bass that you can feel in your chest.

Key Features & Highlights

• Extreme 1500W RMS / 3000W Peak Power: Built to handle massive continuous amplifier wattage without thermal degradation or compression.

• Massive 219 Oz (6.2 kg) Magnetic Motor: Heavy-duty double-stacked ferrite magnet array drives high motor strength (BL factor) for razor-sharp transient control.

• 3.0-Inch (76mm) High-Temp Voice Coil: Wound with high-grade round aluminum wire on a heat-resistant black aluminum former for maximum power dissipation and mechanical excursion (40mm Xmax).

• Unpressed Cellulose Cone & Stitched Surround: Non-pressed paper cone combined with a high-durability compressed foam surround (double-stitched) prevents cone flex under high-SPL pressure.

• Heavy-Duty Cast Aluminum Basket: Features spider-cavity venting to circulate cool air directly around the voice coil during intense bass note playback.

• Dual 2-Ohm (D2) Impedance: Allows flexible wiring configurationswire down to 1-Ohm for maximum monoblock amplifier output or 4-Ohm for high-power bridged setups.

Technical Specifications

• Brand: Aura Car Audio

• Model: Venom 12 D2 (VENOM-12.D2)

• Subwoofer Size: 12-Inch (30.5 cm)

• Continuous Power (RMS): 1501 Watts

• Maximum Peak Power: 3001 Watts

• Nominal Impedance: Dual 2-Ohm (2 x 2 )

• Voice Coil Diameter: 3.0-Inch (76 mm) Black Aluminum Former

• Magnet System Weight: 219 oz (6.2 kg) High-Grade Ferrite

• Frequency Response: 30 Hz 400 Hz

• Sensitivity (1W/1M): 85.2 dB

• Resonant Frequency (Fs): 43 Hz

• Total Quality Factor (Qts): 0.41

• Equivalent Volume (Vas): 12.83 L

• Linear Excursion (Xmax): 40 mm

• Frame / Basket: Heavy-Duty Die-Cast Aluminum with Air Vents

• Terminals: Integrated 8 AWG Spring-Loaded Push Terminals

Enclosure Box Recommendations

• Ported / Vented Enclosure (Recommended for Max SPL): 1.8 to 2.5 Cu. Ft. tuned to 32Hz – 38Hz for deep, rumbling low-frequency extension.

• Sealed Enclosure (For Tight, Accurate Bass): 1.0 to 1.4 Cu. Ft. for compact spaces and punchy music genres.

Frequently Asked Questions

What size amplifier should I use with the Aura Car Audio Venom 12 D2?

We recommend pairing this subwoofer with a quality Class-D Monoblock Amplifier capable of delivering between 1500W RMS and 2000W RMS at a 1-Ohm load.

How should I wire this dual 2-ohm subwoofer?

You can wire the dual 2-ohm coils in parallel to present a 1-ohm load to your monoblock amplifier (maximizing output) or in series for a 4-ohm load.

Why Choose Aura Car Audio Venom 12 D2?

• Built for Competition & Daily SPL: Rugged construction designed to maintain high output without voice coil overheating or cone tearing.

• Flat Silver-Coated Tinsel Leads: Woven directly into Nomex spiders to prevent lead slap and connection failure at high excursions.

• Heavy 8 AWG Push Terminals: Securely accepts thick speaker wire directly from high-current amplifiers.

Technical Integration & Sourcing Assurance

• 100% Genuine Product Sourcing: Guaranteed authentic, brand-new Aura Car Audio subwoofer shipped directly from verified brand channels.

• Enclosure & System Design Assistance: Need help calculating custom L-port dimensions, tuning frequencies, or amplifier gain matching for this subwoofer? Our internal car audio engineering team is here to assist.
