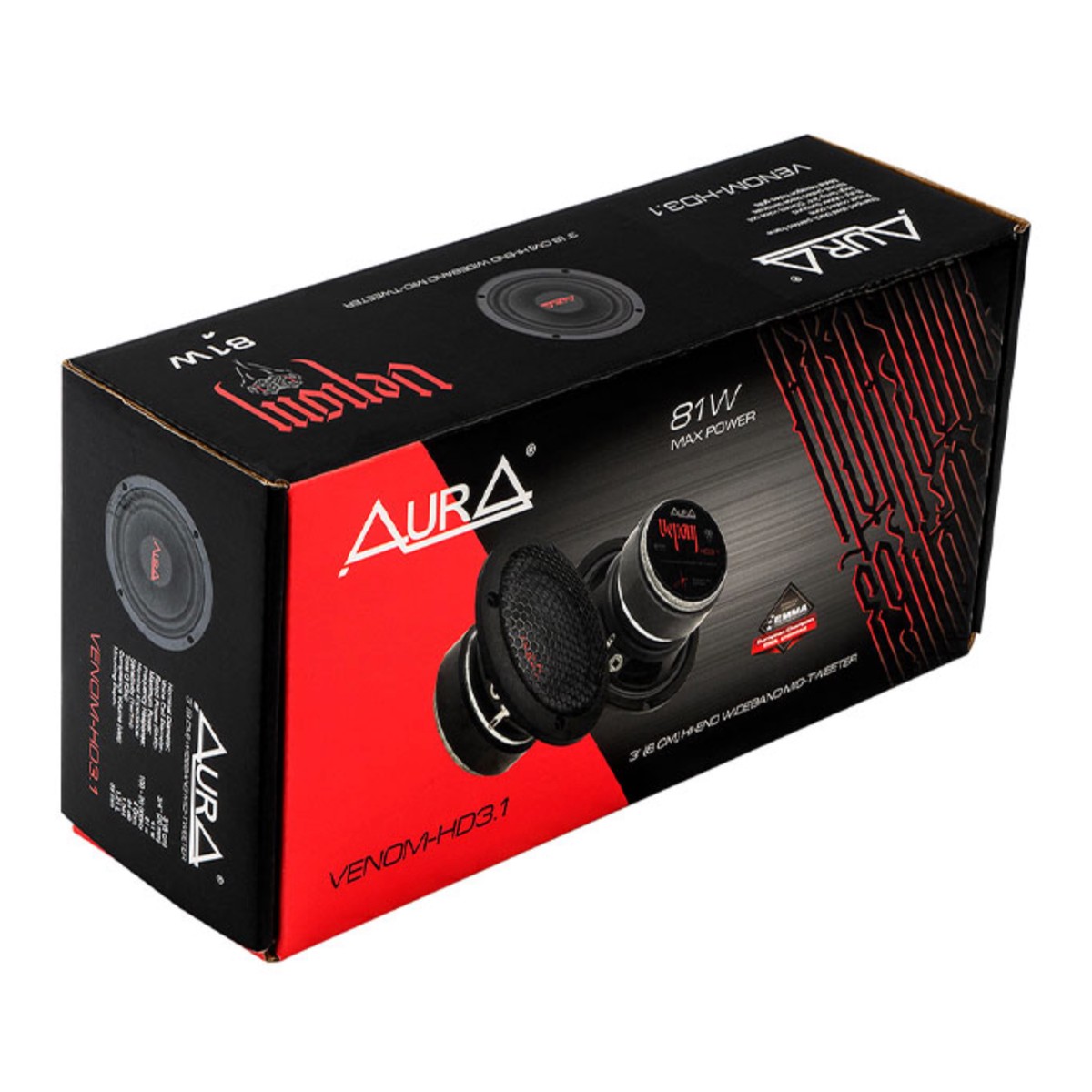

Aura Car Audio Venom HD3.1 3-Inch High-Definition Midrange Speakers Set with Pillar Pods

Elite 3-Way Front Soundstage: Aura Car Audio Venom HD3.1 Signature Edition Midrange Set

Product Overview

Elevate your vehicle’s audio system to true 3-way sound quality with the Aura Car Audio Venom HD3.1 Signature Edition 3-Inch Midrange Speakers. Designed under strict technical supervision by AurA Sound Equipment, this high-definition driver set produces crisp, uncolored vocals and natural instrument acoustics across a ultra-wide 100Hz 20,000Hz frequency band. Paired with custom A-pillar pods and protective metal grilles, the Venom HD3.1 elevates your soundstage directly onto your dashboard for razor-sharp vocal imaging and lifelike clarity.

Key Features & Highlights

• 41W RMS / 81W Max Power Handling: Optimized 41 Watts RMS continuous power (81W Peak) delivering clean, distortion-free mid-range and mid-high response.

• Coated Paper Cone & Butyl Rubber Surround: Lightly coated paper cone delivers warm, smooth vocal timber, while the durable butyl rubber surround ensures precise, linear cone motion.

• Acoustically Angled Pillar Pods Included: Custom-molded/CNC-machined pillar enclosure pods angle the drivers directly toward listener ear level for immersive stage height and width.

• Compact 3/4-Inch (20mm) High-Temp Voice Coil: Engineered for efficient heat dissipation and thermal stability during prolonged listening.

• Heavy-Duty Stamped Steel Basket: Anti-resonant stamped steel chassis maintains rigid motor alignment with a ultra-shallow 39mm mounting depth.

• Nickel-Plated Blade Terminals & Metal Grilles: Premium corrosion-resistant blade terminals ensure tight electrical connectivity, bundled with rugged metal mesh protective grilles.

Technical Specifications

• Brand: Aura Car Audio

• Model: Venom HD3.1 Signature Edition (VENOM-HD3.1)

• Driver Size / Diameter: 3.0-Inch (8 cm)

• Continuous Power (RMS): 41 Watts (per driver)

• Maximum Peak Power: 81 Watts (per driver)

• Nominal Impedance: 4-Ohm (4 )

• Frequency Range: 100 Hz 20,000 Hz

• Sensitivity (1W/1M): 84 dB

• Voice Coil Diameter: 3/4-Inch (20 mm) High-Temperature

• Total Quality Factor (Qts): 1.044

• Equivalent Volume (Vas): 1.21 Liters

• Mounting Depth: 39 mm

• Basket Material: Stamped Steel

• Cone Material: Coated Cellulose Paper Cone

• Surround Material: Butyl Rubber

• Terminals: Nickel-Plated Spade / Blade Connectors

Crossover & Active DSP Setup Guidelines

• High-Pass Filter (HPF – Active DSP / Amp): Recommended HPF set between 200 Hz 300 Hz @ 12dB or 24dB/octave slope to protect the 20mm voice coil and maximize power handling.

• Low-Pass Filter (LPF – Crossover to Tweeter): Recommended LPF set between 3,500 Hz 5,000 Hz for a smooth frequency transition into high-frequency tweeters.

Frequently Asked Questions

What amplifier power is best suited for the Venom HD3.1 Signature Edition?

We recommend powering these 3-inch midrange drivers with an amplifier outputting between 35W RMS to 60W RMS at 4-Ohms per channel, preferably conditioned through a Digital Signal Processor (DSP) or clean active crossover filters.

Can these drivers be installed using the included metal grilles and pods?

Yes! The set includes custom A-pillar pods designed to mount onto your cars original A-pillar trims along with heavy-duty metal mesh grilles to keep the speaker cones safe from accidental physical contact.

Why Choose Aura Car Audio Venom HD3.1?

• Signature Edition Engineering: Manufactured to strict quality control standards for maximum reliability and accurate acoustic playback.

• Ultra-Shallow 39mm Mounting Depth: Easy to mount into custom pods, dash corners, or custom door sail panels without hitting interior vehicle structures.

• Includes Protective Metal Grilles: Comes standard with custom-fit metal mesh grilles for clean cosmetics and driver protection.

Technical Integration & Sourcing Assurance

• 100% Genuine Product Sourcing: Guaranteed authentic, brand-new Aura Car Audio Signature Edition midrange speakers shipped directly from verified brand channels.

• DSP Tuning & Crossover Guidance: Need advice setting HPF/LPF slopes, EQ curves, or time alignment for these 41W RMS drivers? Our internal car audio engineering team is here to assist.
