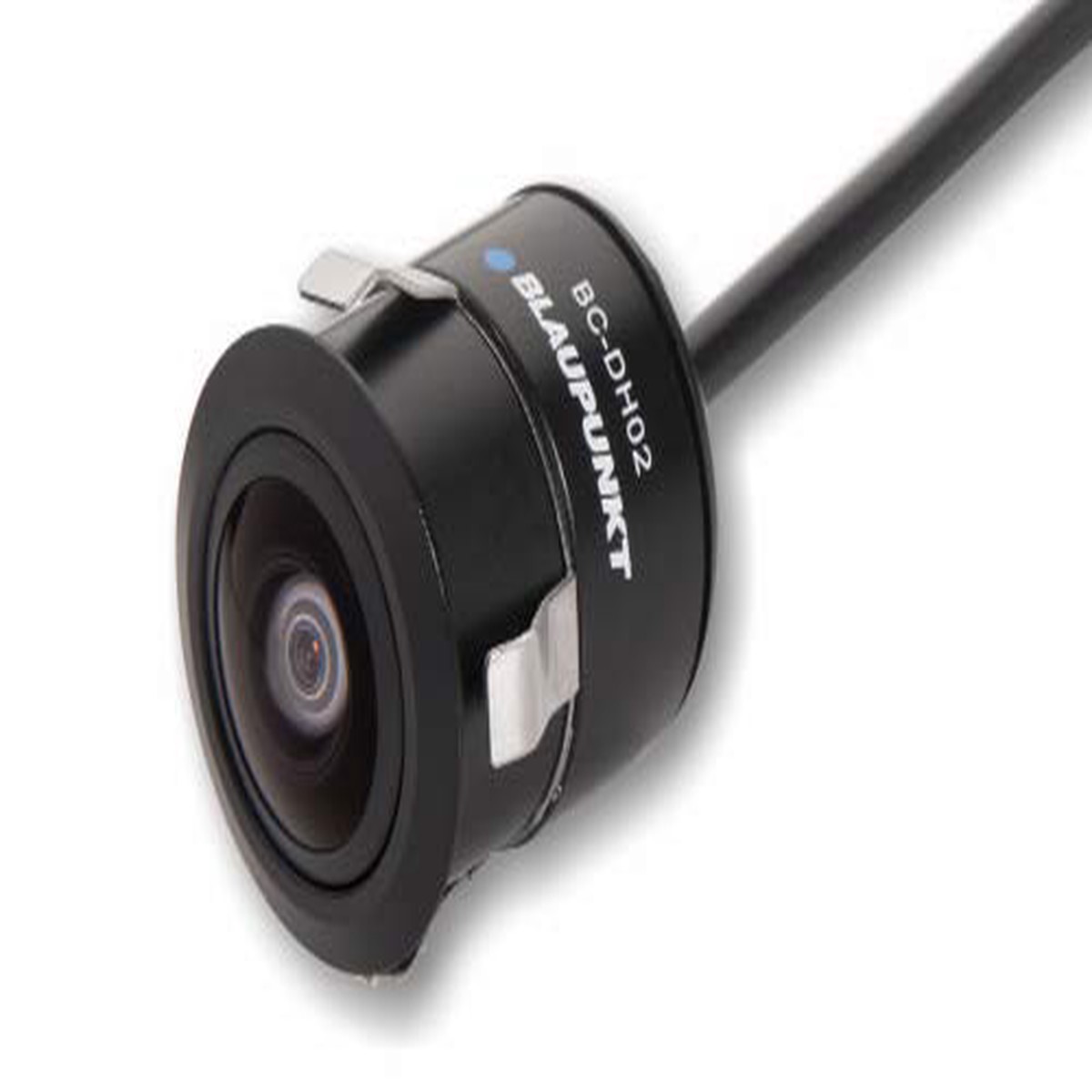

Blaupunkt Reverse Camera BC DH02

Product Overview

Bureau of Indian Standards (BIS) certified 170 Universal Rear View Bumper Camera

Car Accessories – Reverse Camera

170 Blaupunkt Universal Rear View Camera – BC DH02

BC DH02 (rear bumper camera) is equipped with high end 1/3″ CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside.

C-MOS Sensor

ACMOS sensoris an electronic chip that converts photons to electrons for digital processing. BC DH02 incorporates a highly efficient color sensor and modern electronics, reducing power consumption.

General Specifications

• Power Supply: DC12V3V
• Current Consumption: 50mA
• Resolution: 720 TVL
• Optical Format: 1/3
• Image Sensor: CMOS
• Effective Pixels: 1080 x 720
• Lens Angle: 170 wide angle
• Electronic Shutter: 1/60 – 1/100000 sec
• White Balance: Auto
• Humidity: up to 95%
• Water Resistant
• Illumination Min.: 0.1 Lux
• PAL / NTSC compatible
• Operating Temperature: -20C – +70C

Frequently Asked Questions (FAQ)

Q: Will the Blaupunkt BC DH02 reverse camera work with my car stereo?

A: Yes, as long as your head unit or dashboard screen features a standard RCA Reverse Camera Input (Video In). It is universally compatible with aftermarket touchscreen systems (like Pioneer, Sony, Blaupunkt, Alpine) as well as factory screens equipped with a camera input adapter.

Q: Does the camera display parking trajectory lines on the screen?

A: Yes. The BC DH02 displays integrated parking reference lines on the video feed to help you judge distances between your rear bumper and surrounding objects while reversing.

Q: Is the camera durable enough to survive rainstorms and pressure car washes?

A: Absolutely. The camera is rated IP68 waterproof and dustproof, meaning it is fully sealed against heavy rain, mud, dust, and direct water jets during automated or high-pressure car washes.

Q: How does the camera turn on when I start reversing?

A: During installation, the camera’s power feed wire is tapped directly into your vehicle’s reverse tail light circuit. Whenever you shift your gear selector into Reverse (R), the camera powers on instantly and signals your head unit screen to display the live rear video feed.

Q: Where is the camera usually mounted on the car?

A: The BC DH02 features a versatile, low-profile bracket designed to mount cleanly near the rear license plate light housing or center rear bumper area, ensuring a centered, discreet view without altering your car’s aesthetic styling.
