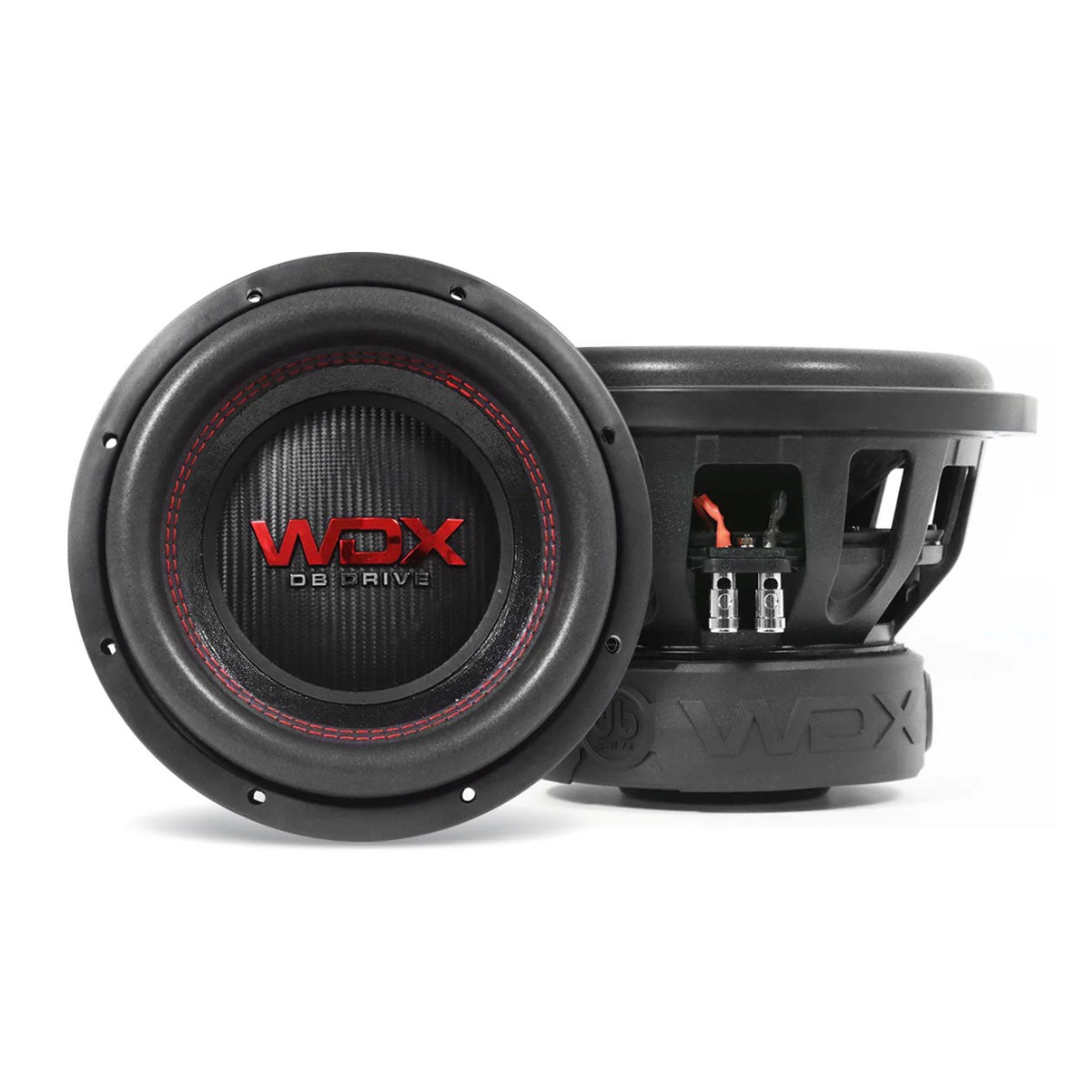

DB Drive WDX8G1.4 8-Inch G1 Series Dual 4-Ohm Subwoofer (1200W Max)

Product Overview

TheDB Drive WDX8G1.4 is a high-performance 8-inch subwoofer designed to deliver “big bass” from a small footprint. Part of the renowned WDX G1 Series, this woofer is built for enthusiasts who want massive excursion and deep low-frequency response in tight spaces. Its dual 4-ohm voice coil configuration provides versatile wiring options, allowing you to optimize the load for your monoblock amplifier.

Engineered for durability and power, the WDX8G1.4 features a high-grade ferrite magnet and a non-pressed paper cone that remains rigid under extreme pressure. The high-roll foam surround allows for the significant linear travel required to move enough air for truly impactful bass. Whether installed in a ported or sealed enclosure, this 8-inch driver punches well above its weight class.

Key Features:

• Massive Power Output: Handles a continuous 600 Watts RMS and up to 1200 Watts Max, making it one of the most powerful 8-inch woofers available.

• Superior Build: Features a 2-inch high-temperature voice coil and a protective magnet cover for long-lasting reliability.

• High Excursion Design: The high-roll surround and large-diameter spider ensure maximum cone travel without mechanical failure.

• Versatile Wiring: Dual 4-ohm coils allow for a 2-ohm or 8-ohm final load, perfect for a variety of amplifier setups.

• Die-Cast Aluminum Basket: Provides a rigid foundation that eliminates resonance and improves overall sound quality.

Technical Specifications:

• Type: 8-inch High-Output Subwoofer

• Power Handling: 600W RMS / 1200W Max

• Impedance: Dual 4-Ohm

• Voice Coil: 2.0″ (50.8mm) High-Temp

• Magnet: 120 oz. High-Grade Ferrite

• Cone Material: Non-Pressed Paper

• Mounting Depth: 5.35″ (136mm)

• Cutout Diameter: 7.24″ (184mm)

Frequently Asked Questions (FAQs)

Q: How should I wire a single DB Drive WDX8G1.4 to my amplifier?

A: Since it features Dual 4-Ohm voice coils, you can wire the coils in parallel for a 2-Ohm final load (compatible with almost all monoblock amplifiers) or in series for an 8-Ohm final load.

Q: What size amplifier is recommended for the DB Drive WDX8G1.4?

A: We recommend pairing this subwoofer with a monoblock amplifier that delivers between 500 and 700 Watts RMS into a 2-Ohm load.

Q: Does this 8-inch subwoofer work best in a sealed or ported box?

A: While it can operate in a compact sealed box for tight acoustic response, the WDX8G1.4 performs best in a small ported (vented) enclosure tuned around $36ext{ Hz} 38ext{ Hz}$ for maximum SPL output and deep bass extension.
