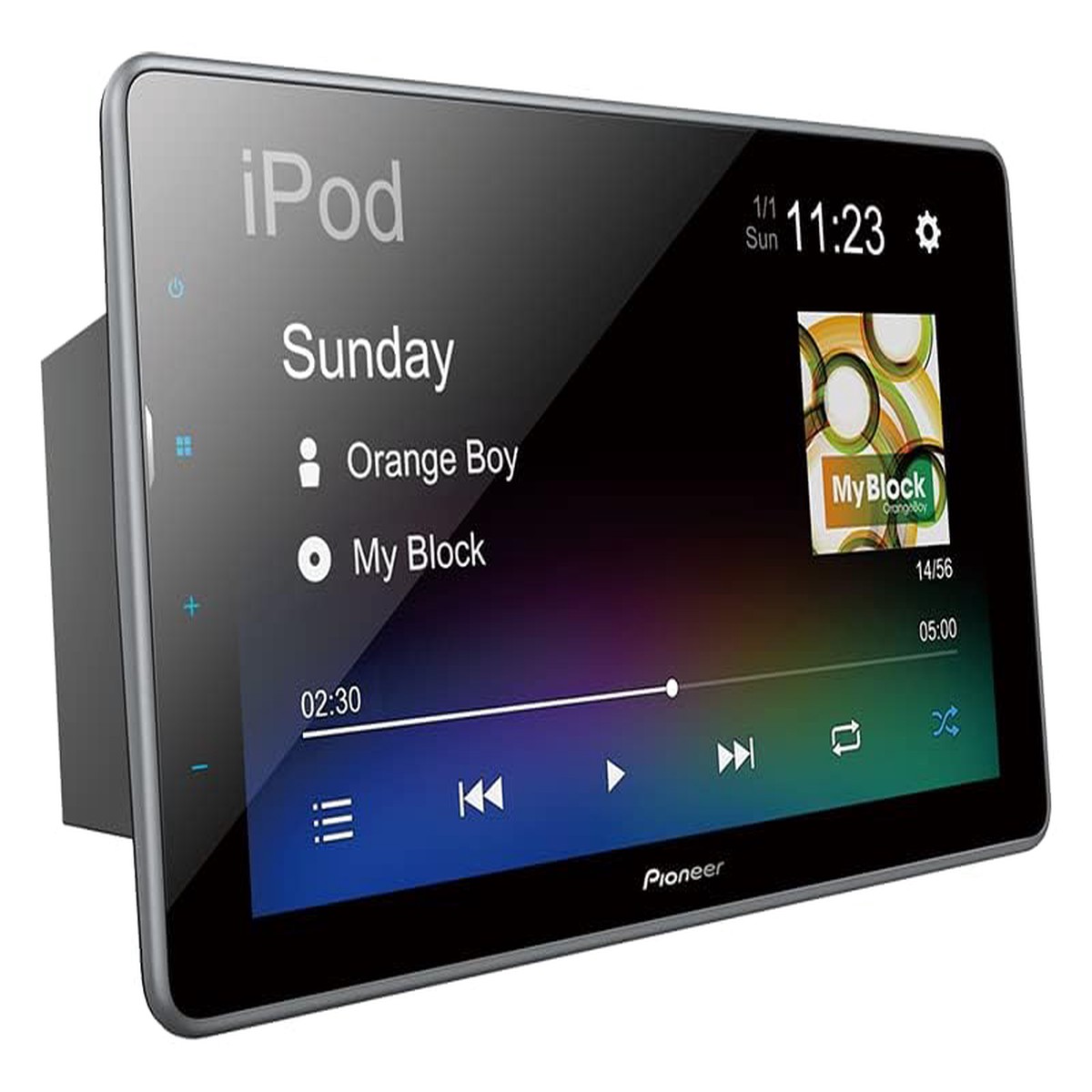

Pioneer DMH-AF555BT 9″ Large Capacitive Touch Screen & Seamless Smartphone Mirroring with WebLink Cast

Product Overview

Discover a seamless mirroring experience with the Pioneer DMH-AF555BT 9″ Large Capacitive Touch Screen. Effortlessly control your smartphone through the screen and enjoy the convenience of WebLink Cast for seamless mirroring. With a vivid display, stay connected and entertained with Pioneer.

Specifications

• Media / Source BT/USB/ AUX/Radio
• Format WMA/MP3/WAV/AAC/FLAC/MP4/AVI/WMV/
• MKV/FLV/MOV/TS/JPEG / bmp/VC1/png
• Tuner Best Stations memory Yes
• Preset 5
• Bands * 6 Stations
• Band FM123/AM12
• Interface AUX 1 (Rear)
• Connectivity Weblink
• USB Interface Yes(Rear)
• BLUETOOTH Built-In (Phone/Audio)
• Audio POWER MOSFET 50W X 4
• Subwoofer Control Yes
• Equalizer 13-Band Graphic
• Crossover network HPF/LPF
• Manual Time Alignment No
• RCA Pre-outs 3 (2V)
• Din Size2 Din
• RGB Input No
• Multi language Display No
• USB Quick Charge For Android
• Rear Camera Input Yes
• Power Off Mode Yes
• Parking Assist Guidelines No
• Color Customization 5 Display Colors

HDMI Input No

Display Off Mode Yes

Steering Wheel Control Yes

Frequently Asked Questions (FAQ)

Q: Does the Pioneer DMH-AF555BT support screen mirroring from both Android and iPhones?

A: Yes! Using the WebLink Cast app and a USB connection, you can mirror compatible Android and iOS smartphone screens directly onto the 9-inch display.

Q: Can I connect a reverse parking camera to this head unit?

A: Yes. The DMH-AF555BT includes a dedicated rear camera video input that automatically triggers the camera view when you shift into reverse gear.

Q: Will this 9-inch floating screen fit in my vehicle’s dashboard?

A: The DMH-AF555BT features a compact mounting body with a floating 9-inch faceplate, allowing it to be installed into most standard dashboard openings using vehicle-specific installation accessories.
