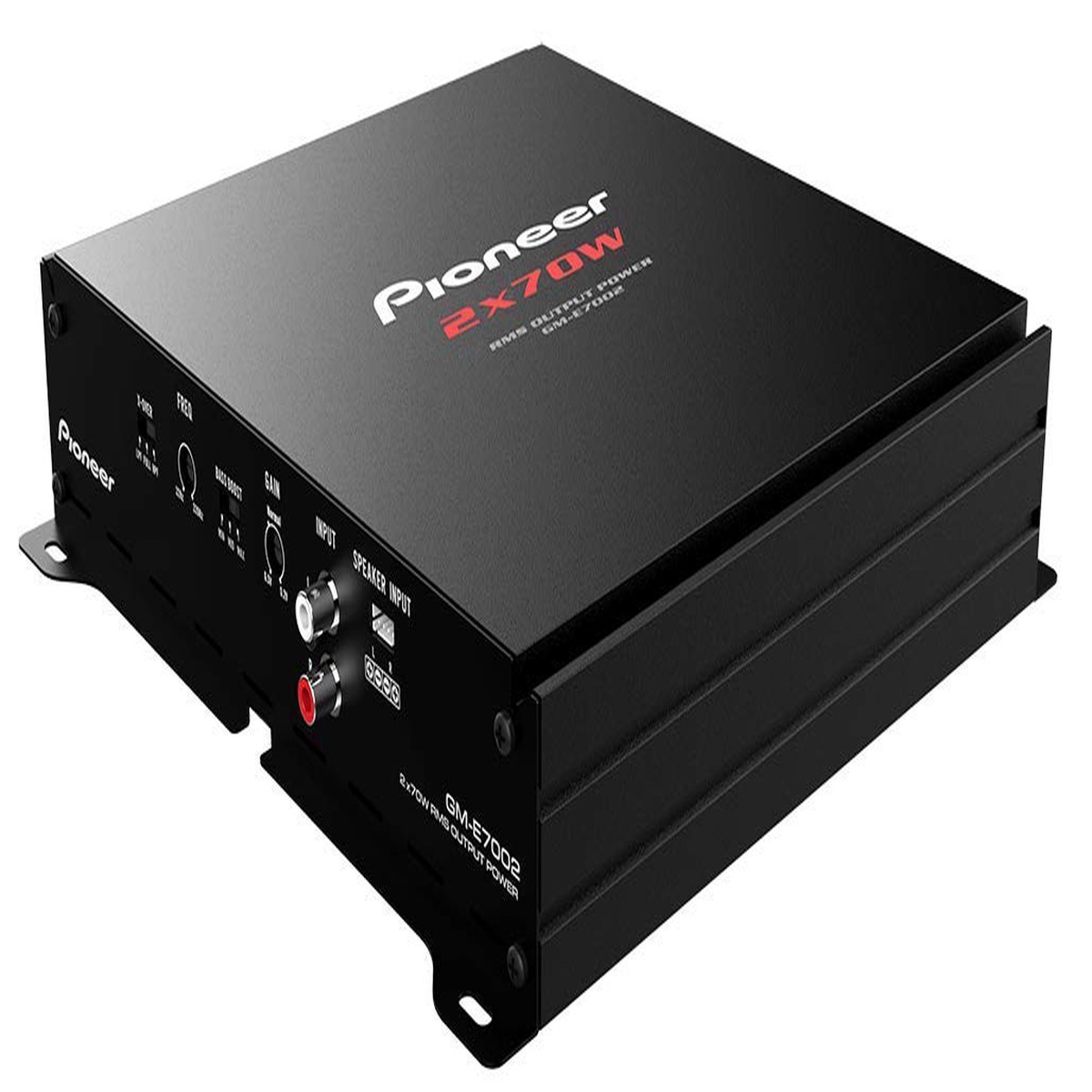

Pioneer GM-E7002 Bridgeable 2 Channel Class AB Amplifier

Product Overview

The Pioneer GM-E7002 is a compact, high-value 2-channel Class-AB car amplifier designed to add warmth, clarity, and increased volume to your vehicles factory or aftermarket sound system. Rated at 500 Watts Max Power Output, the GM-E7002 produces 70 Watts RMS x 2 at 4 Ohms or 95 Watts RMS x 2 at 2 Ohms, making it a great solution for driving full-range speakers or coaxial pairs.

Flexible Stereo or Bridged Operation

Whether you want to power a set of high-performance front door speakers or run a single subwoofer, the Pioneer GM-E7002 offers bridgeable functionality. When bridged into 1-channel mode ($4\Omega$), it delivers up to 190 Watts RMS, providing clean power to a subwoofer enclosure while maintaining a compact mounting footprint.

Integrated Sound Tuning & Easy OEM Integration

Equipped with a selectable Low-Pass Filter (LPF at } 80ext{Hz}$) and a 3-step Bass Boost switch ($0ext{dB, } +6ext{dB, } +12ext{dB at } 50ext{Hz}$), this amplifier gives you quick control over low-end bass output. High-level speaker wire inputs allow for seamless connection to factory original radios without RCA output jacks, alongside standard RCA low-level inputs for aftermarket receivers.

Product Features

About this item

• Channel- Number of channels: 2/1(Bridgeable)
• Frequency Response: 15~22kHz+/-1dB
• Power Max Wattage (4 ohms): 125Wx2/500Wx1(BRIDGE) Rated Power(2 ohms =1% THD+N): 95Wx2 Rated Power(4 ohms =1% THD+N): 70Wx2 Rated Power(Bridged 4 ohms): 190Wx1
• NEW 2020 Model With 70 RMS POWER, More than it’s Predecessor

GM-E7002, 2-channel bridgeable Amplifier, New 2020 Model, Successor Of The Legendary GM-A3702 Now With More Power. High Power and Energetic Sound- High output with the large-capacity electrolytic capacitors. Stable performance ensured with optimized PCB board. Flexible Sound Tuning- Wide range, variable LPF & HPF for system flexibility. Two-step Bass Boost as a juice for more fun with Two-step BASS BOOST & Wide range, Variable LPF & HPF Wide range, Variable LPF & HPF.

Frequently Asked Questions (FAQ)

Q: Can I connect the Pioneer GM-E7002 to my factory stock head unit?

A: Yes! The GM-E7002 includes a high-level speaker wire input connector, allowing you to tap directly into your factory radio’s speaker wires without needing a separate Line Output Converter (LOC).

Q: Can I use this 2-channel amplifier to power a single subwoofer?

A: Yes. You can bridge Channels 1 and 2 together into a single 4-Ohm output, supplying up to $190ext{W RMS}$ to your subwoofer while engaging the built-in $80ext{Hz}$ Low-Pass Filter.

Q: What wiring kit size is recommended for installing the GM-E7002?

A: An 8 AWG 100% Oxygen-Free Copper (OFC) power wiring kit with a 30A to 40A inline fuse is recommended for reliable power delivery and system protection.
